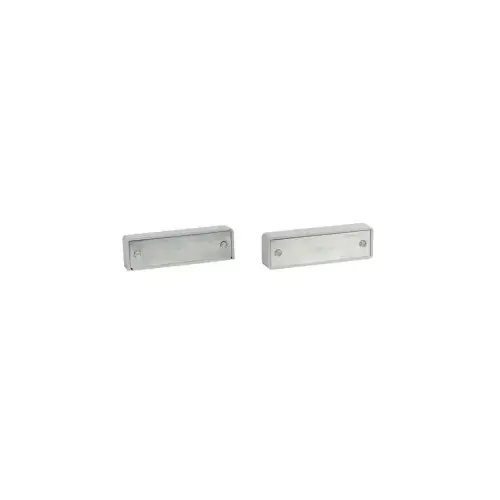

DETEX MS-2049S Surface Mounted Magnetic Switch Heavy Duty Gray
Item #: MS-2049S by DETEX
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Mount
Surface
Product Type
Electromagnetic Lock
Alternate Part Number-1
104292
Product Height
5-3/16 Inch
ADA Compliant
No
Contact Ratings
5A at 24 VDC
Standards
cULus Listed
Function Family
Part/Component
Features
Tamper Protection; Components Potted to Protect Against Shock and Moisture; Provides Assurance That Protected Doors are Under Surveillance; Minimizes False Signals Due to Loosely Closed Doors; Switch Rated for Over One Million Operations Under Load
Series
Parts/Accessories
Switch Type
Single Pole Single Shrow (SPST)
Manufacturer Parent
Detex
Sub-Series
EAC_Door Status Sensors_detex_2
Warranty
3 Year Limited
Voltage
24V DC
Color
Gray
Mounting
Surface Mount
Dimension
2-1/10" x 7-7/10"
Material
ABS Thermoplastic
Fire Rated
Yes
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electronic Warranty
Mounting Plate Size
1-1/4" x 4-7/8"
Operating Voltage
24 Volt DC
UL Listing Type
cUL Listed
Hazardous Material
No
No of inners
1
Product Overview
Magnetic Switch
Product Features
Technical Information
These magnetic switches are designed primarily to serve as sensing devices to detect the opening of a door or window; to assure that a protected door is securely under surveillance; to serve as a trigger for a wall-mounted Detex Exit Alarm; to signal that a door has been inadvertently left open; and to be used as a direct switch to set off many kinds of audio and visual alarms.
Product Features
- Tamper protection - mounting screws inaccessible when door closed
- Components potted to protect against shock and moisture
- Easy installation with concealed wiring and color coded leads
- Surface mounted units are housed ina durable high impact ABS thermoplastic, a UL listed material used in the manufacture of telephones, auto bodies, etc.
- Wide range of alarm and signal applications
- Minimizes false signals due to loosely closed doors
- Switch rated for over one million operations under load
Technical Information
- Maximum Contact ratings 24VDC, 0.5A
- For use on steel, aluminum or wood doors and frames
- Switch - single pole, double throw (SPDT)
- Wiring leads, 12" long, color coded, concealed
