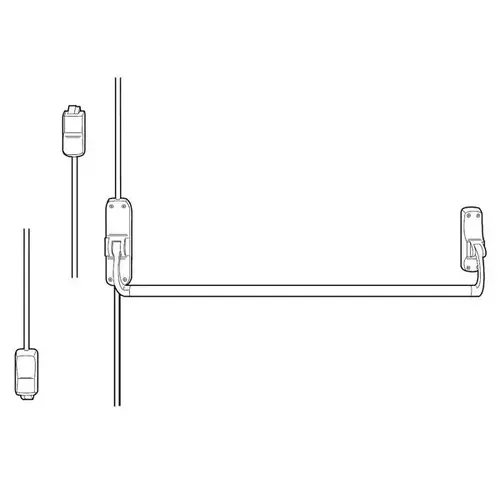

Von Duprin 8827EO-F US3 Fire Rated Surface Vertical Rod Push Bar Exit Device, Bright Brass Finish
Item #: 8827EO-F US3 by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For single and double doors
- Device functions Field reversible Device ships EO, DT, TP, K, L, TL
- Crossbar length 42" (1067 mm) field sizable
- Fire rated
- Fits door stiles as narrow as 3-1/2" (90mm)
- Device centerline 3913/16"
- Comes with strike set
- Crossbar centerline to finished floor 36 13/16" (935 mm) at center
- Fully Reversible
- Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
- Field Sizable
- Faceplate 1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
- Cylinder backset 2 3/4" (70 mm)
- Includes 5/8" (16mm) throw latch bolt
- Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing 1" (25 mm) outside diameter
- Projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
- Latchbolt 5 /8" (16mm) throw
- Fasteners and sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included
Approved for Commercial Use
Yes
Door Thickness
1-3/4"
Handing
Left, Reversible, Right
Width
42
UL Listed
Yes
Product Class
Commercial
Theme
Commercial
BHMA Certification
Grade 1
Projection
4.875
ADA
Yes
Fire Rated
3 Hours {A}, Yes
Panic Proof
Yes
Configuration
Rod Exit Device
exit device type
Vertical Rod Device
Exit Trim Function
Exit Only
Device Type
Surface Vertical Rod
Includes Trim
No
Mechanical Options
Fire Rated Device
Package Qty
1
Physical Appearance
Wide Stile Crossbar
Special Marks
Fire rated 3 Hours {A}
Base Material
Brass
Grade
Grade 1
Color
Bright Brass
Color Code
605/US3
Manufacturer Parent
Allegion
Finish Description
Bright Polished Brass
Function
Exit Only
Function Description
Exit Only-No Trim
Function Family
Exit Only Device
Series
88 Series
Finish Family
Polished Brass
Product Overview
Surface Vertical Rod Exit Device, Exit Only, No Trim, Bright Brass
8827-F surface mounted vertical rod devices for all types of 8 Ft. X 8 Ft. (2438 mm x 2438 mm), UL listed, 3 hours. Fits door stiles as narrow as 3 3/4 In. (95 mm). This device is field reversible.
8827 surface mounted vertical rod devices for all types of single and double doors.
UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizable.
