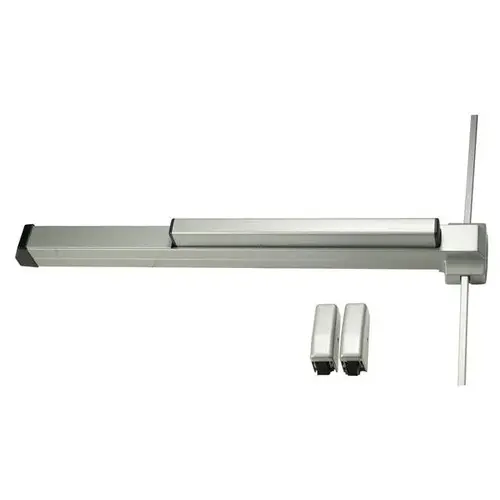

Von Duprin 2227EOF283 3' Fire Rated Surface Vertical Rod Exit Device, Lacquer Sprayed Aluminum Finish
Item #: 2227EOF283 by Von Duprin
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL listed for three-hour fire-labeled installations
- ANSI A156.3, 2001, Grade 1
- Non-handed for your convenience
- Fits door stiles as narrow as 3-5/8" (97mm)
- Field sizable
- Neutral Touchbar Projection: 3-3/4"
- Depressed Touchbar Projection: 3"
- 5/8" throw latch bolt
- Includes strike set for installation
Approved for Commercial Use
Yes
Door Thickness
1-3/4"
Handing
Left, Reversible, Right
UL Listed
Yes
Product Class
Commercial
Theme
Commercial
BHMA Certification
Grade 1
Height
4.25
ADA
Yes
Fire Rated
Yes
Panic Proof
Yes
Configuration
Rod Exit Device
Depth
3.75
Width
33.5
exit device type
Vertical Rod Device
Exit Trim Function
Exit Only
Product Overview
Add both security and convenience to your workplace, school or other facility with Von Duprin's top of the line exit devices. Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. Series 22 exit devices are the economical alternative, incorporating a modern touchbar styling for a variety of doors. The 2227EOF is a surface mounted fire rated vertical rod device for all types of 8' by 8' double doors.
