This CRL Tremco Wedge Gasket Glazing Spline profile is made of extruded 70 durometer dense EPDM. The wedge profile is designed for use in compression glazing systems with Tremco POLYshim II Glazing Tapes. Glazing Spline profiles require a .090" x .062" (2.3 x 1.6 mm) metal nib for proper engagement.
Product Warning:
Special Requirements: A mock-up is recommended by Tremco to verify acceptable mating between both the Glazing Spline and the Metal Nib.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

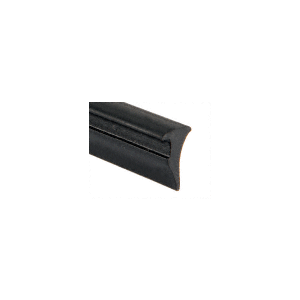

Tremco 1768013 .200" Wedge Gasket Glazing Spline Black
Item #: 1768013 by Tremco
See reviewsSee reviews
In Stock
$552.39
/caseSAVE UP TO 55.24
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 70 Durometer Extruded EPDM
- Used in Compression Glazing Systems with Tremco® POLYshim II Glazing Tape
Roll Length
500' (152 m)
Shipping Weight
10 lb (4.54kg)
Face Clearance
0.200
Brand
Tremco
Finish
Black
Material
EPDM
Finish/Color
Black
Metal Requirements (Inches)
.090 X .062 Metal Nib
Roll Length (Feet)
500
Durometer
70
Metal Requirements
0.062 in. X 0.09 in. Metal Nib (1.5 mm X 2 mm Metal Nib)
Product Overview
This CRL Tremco Wedge Gasket Glazing Spline profile is made of extruded 70 durometer dense EPDM. The wedge profile is designed for use in compression glazing systems with Tremco POLYshim II Glazing Tapes. Glazing Spline profiles require a .090" x .062" (2.3 x 1.6 mm) metal nib for proper engagement.
Product Warning:
Special Requirements: A mock-up is recommended by Tremco to verify acceptable mating between both the Glazing Spline and the Metal Nib.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
