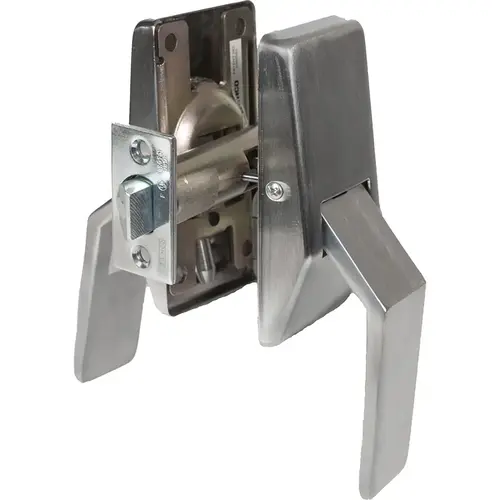

Trimco 1562A-5-52-626-LHClick To Copy 1562A Push/Pull Lockset Satin Chrome

1500 SeriesHospital Latches

Trimco's 1500 Series Push/Pull Latches features a sleekly designed, cold-forged steel base assembly. This refinement allows for improved lever action and simple field reversibility, regardless of the door hand or function. The new base design allows the distributor to stock Trimco latches without having to maintain inventory for several different functions or door hands.

The Trimco Push/Pull latch was originally designed to serve hospital staff, and ensure positive latching for patient protection in event of fire. Its aesthetic appearance, ease of operation, versatility and dependability have led to extensive use in modern buildings. Today, Trimco’s latches are considered the standard of excellence in all types of commercial and industrial structures.

Every 1500 Series latch is equipped with Trimco’s unique, patented, Positive Fire-Feature*…the finest in the industry! A fusible link with a low melting point provides lockup of the corridor side push pad in the event of a fire, preventing ceiling debris or fire-hose pressure from accidentally releasing the latchbolt and creating a life-threatening situation. Trimco's 1560 and 1580 latches are approved by Underwriter’s Laboratories for use on fire-rated openings up to and including 3 hours.

Applications:

• Public Buildings & Facilities

• Commercial & Industrial Buildings

• Assisted Living

• Hospitals & Health Care Facilities

• Restaurants

Features:

• Lever pads and latch covers manufactured from bronze, brass or antimicrobial copper material are suitable for heavy duty use.

• Lever pads are thicker and heavier than those of any other unit available. No problems with handles breaking, even when abused.

• Listed by Underwriter's Laboratory and approved for use by the Veteran's Administration.

• A nylon insert in the latchbolt face provides silent latch action and reduces friction.

• Reversible. Hand and function can be easily changed to accommodate every design requirements.

• Compact design - less than 50% the projection of other Push/Pull latches.

• Options including multiple functions, tubular or mortise locks, engraving, Torx screws and different combinations of paddles up and down.

• Meets ADA requirements.

Functions / Options: 1502:

• Latchbolt for the 1500 Series, 2-3/4" Backset

1503:

• Latchbolt for the 1500 Series, 5" Backset

1505:

• Latchbolt for the 1500 Series

1562A:

• Push/Pull Latch, Tubular, Passage, Levers Down

1562AP:

• Push/Pull Latch, Tubular, Passage, Levers Down, Engraved

1562L:

• Push/Pull Latch, Tubular, Privacy, Levers Down

1562HL:

• Push/Pull Latch, Tubular, Passage, Levers Down

1562E:

• Push/Pull Latch, Tubular, Exit Only

1562M:

• Push/Pull Latch, Mortise, Passage

1562M30:

• Push/Pull Latch, Mortise, Privacy w/ Deadbolt

1562M51:

• Push/Pull Latch, Mortise, Entrance/Office

1562M55:

• Push/Pull Latch, Mortise, Classroom

1562M57:

• Push/Pull Latch, Mortise, Storeroom/Closet

1562M60:

• Push/Pull Latch, Mortise, Privacy/Bathroom

1562M65:

• Push/Pull Latch, Mortise, Dormitory

1562M72:

• Push/Pull Latch, Mortise, Classroom Security

1562Q10:

• Push/Pull Latch, Mortise, Passage

1562Q30:

• Push/Pull Latch, Mortise, Privacy/Bathroom

1562Q51:

• Push/Pull Latch, Mortise, Entrance/Office less cylinder

1562Q55:

• Push/Pull Latch, Mortise, Classroom less cylinder

1562Q57:

• Push/Pull Latch, Mortise, Storeroom/Closet less cylinder

1562Q60:

• Push/Pull Latch, Mortise, Privacy

1562Q65:

• Push/Pull Latch, Mortise, Dormitory/Entrance less cylinder

1562Q72:

• Push/Pull Latch, Mortise, Classroom Security less cylinder

1562AE:

• Push/Pull Latch, Tubular, Exit Only, Paddle Down

1562P:

• Push/Pull Latch, Tubular, Passage, Levers Down, Engraved Levers (Push and Pull)

1563A:

• Push/Pull Latch, Tubular, Passage, Levers Up

1563AP:

• Push/Pull Latch, Tubular, Passage, Levers Up, Engraved Push & Pull

1563P:

• Push/Pull Latch, Tubular, Passage, Levers Up, Engraved Push & Pull

1580A:

• Push/Pull Latch, Tubular, Passage, Push Lever Up – Pull Lever Down

1580AP:

• Push/Pull Latch, Tubular, Passage, Push Lever Up – Pull Lever Down, Engraved Levers (Push and Pull)

1580P:

• Push/Pull Latch, Tubular, Passage, Push Lever Up – Pull Lever Down, Engraved Levers (Push and Pull)

1581A:

• Push/Pull Latch, Tubular, Passage, Push Lever Up – Pull Lever Down

1581P:

• Push/Pull Latch, Tubular, Passage, Push Lever Down – Pull Lever Up

1591A:

• Push/Pull Latch, Tubular, Reverse Latch

1591AP:

• Push/Pull Latch, Tubular, Reverse Latch, Engraved

1591E:

• Push/Pull Latch, Tubular, Reverse Latch, Engraved

1591P:

• Push/Pull Latch, Tubular, Reverse Latch, Engraved

1592LLE:

• Push/Pull Latch, Tubular, Lead Lined Escutcheon Plate

1592LLT:

• Push/Pull Latch, Tubular, Lead Lined Latch Tube

1593RK:

• Replacement Kit For Frame Prepped For Roller Latch

Patents:

• 4003593
• 4986583
• Other patents pending

Standards:

• LEED
• ADA
• UL

Finishes:

• 605 - Polished Brass
• 606 - Satin Brass
• 613 - Oil Rubbed Bronze
• 625 - Polished Chrome
• 626 - Satin Chrome
• 629 - Polished Stainless
• 630 - Satin Stainless
• 710CU - Healthy Hardware
