Trine ANSI-ITL ANSI-ITL Electric Strike Install Tool

Item #: ANSI-ITL by Trine

Brand: Trine

See reviewsSee reviews
See reviews summary
In Stock

$88.88

96.00 /each
SAVE UP TO 8.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Product Type

Misc

Function

Part/Component

Series

Parts/Accessories

Manufacturer Parent

Trine Access Technology

Model

ANSI-ITL

Electronic

Yes

Outdoor Rated

No

Parts and Accessories Type

Installation Accessories

Product Overview

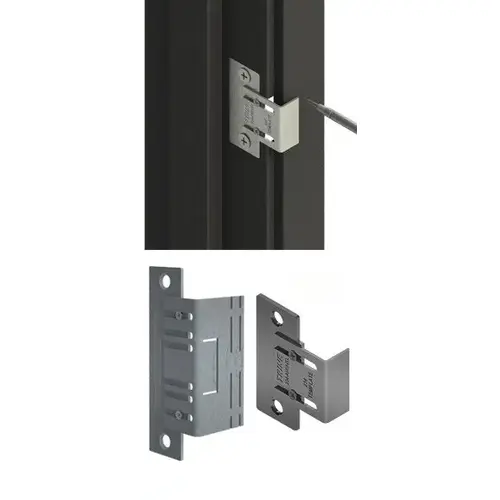

Trine ANSI-ITL Electric Strike Install Tool
  • Trine's ANSI-ITL is the best way to install both 4-7/8" and 2-3/4" Trine Electric Strikes. Lean and efficient - it utilizes only 2 pieces each (screwed together) for the 4-7/8" and 2-3/4" cutouts which means less lost parts. The Installation tool can be used with the 4100, 4100DBDL, 4200, EN400, EN435, EN430 electric strikes as well as 478, 478X, 234, and 234X installations on the 3000 series.
  • Adjustments on the installation tool allow for installation even on the lower cutout of the Schlage L series - for use with the 4100 and 4100 DBDL. Additionally the tool includes a scribe pen for accurately marking the cut-out lines on the frame. Two mounting screws for the tool is also included.
  • Please note the ANSI-ITL replaces the older 478-ANSI-ITL model number.
  • The ANSI-ITL is fast, easy, and accurate. Ask your distributor how you can get yours today.
Features
  • Use to install on all of Trine's 4-7/8" and 2-3/4" tall electric strikes.
  • Easily bolts to tabs (or screw holes) on frame.
  • Use the INCLUDED scribe to to mark lines.
  • 4-7/8" tool can be offset to accomadate Schlage L series cutouts for the 4100 or 4100DBDL.
  • 2-3/4" tool adjusts for the 234X 3000 series plate for Timely frames.

    Trine's ANSI-ITL is the best way to install both 4-7/8" and 2-3/4 cut out which means less lost part. The installation tool can be used with 4100, 4100DBDL, 4200, EN400, EN435, EN430 electric strikes as well as 478, 478X, 234, 234X installations on the 300 Series.

    Adjustments on the installation tool allow for the installation even on the lower cutout of the Schlage L series- for use with the 4100 and 4100DBL. additionally the tool includes a scribe pen for the frame. Two mounting screws of the tool is also included.

Installation And Instruction

ANSI ITL Instructions
