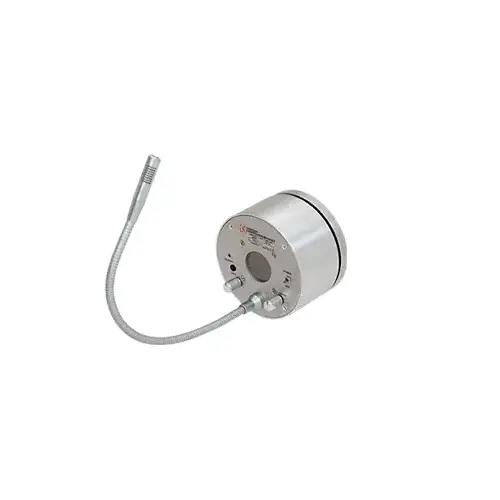

Norcon Communications TTU-1AB-3 Thru Glass Two Way Electronic Communicator Level 3 Bullet Resistance 115V/AC Voltage Satin Anodized

Item #: TTU-1AB-3 by Norcon Communications

Brand: Norcon Communications

See reviewsSee reviews
See reviews summary
In Stock

$2,188.60

/each
SAVE UP TO 218.86
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available

Bullet Resistant: Level 3

Level 1
Level 3

Voltage: 115V/AC

12V/DC
115V/AC
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Thru glass electronic communicator designed for partition window installations requiring two way voice communication without direct physical access.
  • Aluminum body with satin anodized finish provides a clean surface suitable for interior and secured window environments.
  • Outside faceplate diameter measures 5" and supports stable mounting through prepared glass or partition openings.
  • Housing inside depth of 2-1/2" allows proper internal clearance for electrical components within window assemblies.
  • Standard 18" gooseneck microphone provides adjustable positioning to support clear voice pickup on the interior side.
  • Requires a cutout diameter between 3" and 4" to fit common partition window fabrication requirements.
  • AC powered unit supports input voltage range of 100-240 VAC with regulated 15 VDC, 1A power output.
  • Designed for Level 3 bullet resistant applications used in secured transaction and communication areas.
  • Unit weight of 4 lbs supports fixed mounting without additional structural reinforcement in partition systems.

Voltage

115V/AC

Diameter

5" (127mm)

Finish

Satin Anodized

Bullet Resistant

Level 3

Outside Faceplate Diameter

5" (127mm)

Housing Inside Depth

2-1/2" (64mm)

Gooseneck Microphone

18" (457mm) Standard

Material

Aluminum Body

Cutout Required Diameter

3" (76mm) - 4" (102mm)

Mounting

Partition Window Through Hole

Power Source

AC Powered

Power Supply

100-240 VAC (Input) 15 VDC, 1A (Output)

Product Overview

The Thru Glass Two Way Electronic Communicator Level 3 Bullet Resistance 115V/AC Voltage is designed for use in secured transaction windows where clear voice communication is required between two separated areas. This unit installs through a partition window using a thru hole mounting method and supports controlled audio exchange without physical contact. The aluminum body features a satin anodized finish and includes an outside faceplate diameter of 5" with a housing inside depth of 2-1/2" to fit standard window assemblies. It operates on AC power and accepts a power supply input range of 100-240 VAC with a regulated 15 VDC, 1A output. A standard 18" gooseneck microphone allows flexible positioning for voice pickup on the interior side. The required cutout diameter ranges from 3" to 4", allowing compatibility with various partition layouts. Designed for Level 3 bullet resistant applications, this communicator supports secure environments such as service counters, transaction booths, and controlled access areas. The unit weighs 4 lbs and is intended for fixed installation in partition window systems where consistent communication performance and electrical operation are required.
