Two-Way Classic Electronic Communicator DC Power/ Bullet Proof 1/2" To 1" 18" Satin anodized

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

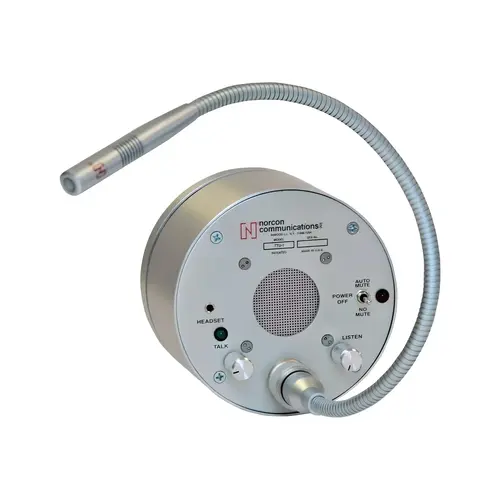

Norcon Communications TTU-1DB-X-L-100 Two-Way Classic Electronic Communicator DC Power/ Bullet Proof 1/2" To 1" 18" Satin anodized

Item #: TTU-1DB-X-L-100 by Norcon Communications

See reviewsSee reviews
In Stock

$2,275.00

/each
SAVE UP TO 227.50

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Provides clear 2-way voice communication.
  • Avoid shouting, repetitions, and misunderstandings.
  • Automatically lowers outside ambient noise.
  • Any individual with basic skills can install this low-maintenance product.
  • Supports wireless as well as wired headsets.
  • Bullet-resistant option is available with Kevlar UL level 3 ballistic rating.

Exterior Thickness

1/2" (12.7 mm)

Bullet Resistance

Level 3

Shipping Weight

6 lb (2.72kg)

Diameter

5" (127 mm)

Finish

Satin Anodized

Material

Machined aluminum, tamper resistant

Useful Time (On Battery Unit)

10 to 12 Hours Per Charge

Mounting

Partition hole 3-4" di (3-1/2" recommended)

Type

DC Power/ Bullet Proof

Gooseneck Size

18"

Weight

4 lbs

Glass Thickness

1/2" to 1"

Glass Size

1/2" To 1"

Audio Frequency Response

Selectively shaped for maximum voice intelligibility

Audio Power

2 Amplifier (2 watts per amplifier)

Battery

Nickel-cadmium

Battery Charge Time

6 hours

Battery Operation Time

10 hours

Distortion

Less than 2%

Inside Control Housing

5" (di) x 3-1/2" (d)

Listen Mode

20 db compression

Microphones

Electret

Outside Face Plate

5" (di) x 1/2" (d)

Power Supply Input

100-240 VAC

Power Supply Output

15 VDC, 1A

Talk Mode

Vox (voice activated)

Product Overview
For Norcon, safety and security is always a priority. This unit is a 2- way, hands-free audio system that provides high-quality personal communication between people separated by security or isolation barriers. It is the most widely used system of its type in the U.S. and the world. This product is perfect for drive-thrus, toll booths, ticket counters, etc.
Special features
Clear 2-way hands-free voice communication
Avoids yelling, repetition, misunderstanding
Battery powered
Quality electronic design and engineering
Removable 18" XLR mic, optional 10" and 24" mic length upon request
Rugged, tamper-resistant materials
Simple, one-person installation
Compact, contemporary design, Fits any decor
Built in headset jack
ADA compliant option
Wireless integration option
Bullet resistant option
Push to talk option
Recording module option
Built in the U.S.A
We have a long history of customization, contact us about your application
Other features
The well-equipped control panel consists of listening, and talk volume, power switch, power on with auto-mute, headset jack, and power and talk LED.
The highly sturdy and robust body of the device makes it suitable for high traffic areas.
The product is easy to operate and does not require specialized training.
The product is made with tamper-resistant materials.
Specify barrier thickness when ordering.
Add On Options
Push To Talk - $125 Noise Cancelling - $345 Monitoring & Recording - $365 ADA Compliant - $395
