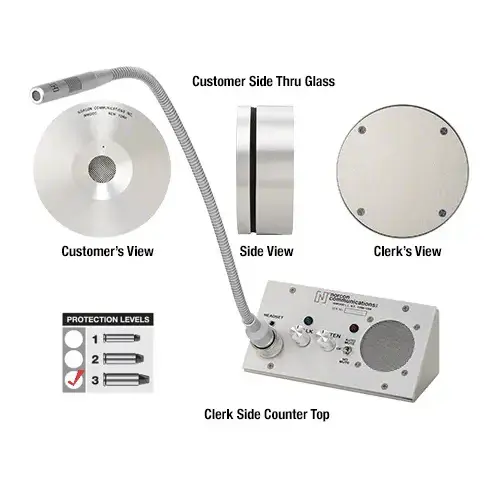

Norcon Communications TTU-7B-X Satin Anodized 115V AC Protection Level 3 Bullet Resistant Combination Counter-Top/Thru-Glass Two-Way Electronic Communicator
Item #: TTU-7B-X by Norcon Communications
In Stock $2,506.00 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Compact and lightweight headset with a boom mic and a single speaker.
- Promotes business by providing optimum sound quality.
- Comes with an auto-mute function that blocks outside noise from disturbing the attendant.
- Any individual with basic skills can install this device since there is no need to cut a hole in the barrier.
- Supports wired and wireless headsets.
- Includes sound-shaping circuitry for optimal performance and compression circuitry to lower harsh, loud sounds.
Depth
2-3/8
Shipping Weight
6 lb (2.72kg)
Exterior Thickness
1/2" (12.7 mm)
Height
2-3/8
thru-glass unit diameter
5" (127 mm)
counter top unit width
6" (152 mm)
Mounting Hardware Included
No
Microphone Inclued
Yes, Removable Mic
Mounting
Partition hole 3-4" di (3-1/2" recommended)
Type
Bullet Proof
Gooseneck Size
18"
Finish
Satin Anodized
Material
Aluminum
Weight
4 lbs
Glass Thickness
Up to 1/2"
Glass Size
Up To 1/2"
Audio Frequency Response
Selectively shaped for maximum voice intelligibility
Audio Power
2 Amplifiers (2 watts per amplifier)
Distortion
Less than 2%
Inside Assembly
6" (w) x 2-3/8" (h) x 2-3/8" (d)
Inside Control Housing
5" (di) x 1" (d)
Listen Mode
20 db compression
Microphones
Electret
Outside Assembly
5" (di) x 1/2" (d)
Power Supply Input
100-240 VAC
Power Supply Output
15 VDC, 1A
Talk Mode
Vox (voice activated)
Width
6
Glazing Thickness
1-11/16
Protection Level
3
Finish/Color
Satin Anodized
Code Compliances
UL 752
Power Supply Required
115V AC
CRL Norcon Bullet Resistant Two-Way Electronic Communicators are self-contained, easily installed devices that allow clear, intelligible two-way conversation in locations where security must be maintained with Level 3 ballistic protection. The new TTU7BX combination counter top/thru-glass model is the solution when the clerk needs to stay seated too far away from the glass barrier to reach a thru-glass microphone, and a thru-glass unit is preferred for the customer side. In its Auto-Mute mode the communicator is automatically activated when the clerk speaks for hands-free operation. It has a removable gooseneck microphone, with talk and listen volumes adjustable by the clerk.
The New "X" Series Norcon Communicators all have a removable gooseneck microphone, and all models include a receptacle for use with the optional TTU1HS Hands-Free Headset. All Norcon units are supplied complete with mounting hardware, instructions, and power supply. All exposed hardware is tamper resistant. Unit operates on 115V AC current. The TTU1X Extension Kit for glass up to 2-3/4" (70 mm) thick may be ordered separately.
NOTE: Non-Bullet resistant models include bolts for glass up to 1/2" (12 mm) thick. Bullet resistant models are pre-set for glazing up to 1-11/16" thick.
SPECIFICATIONS:
Material: Aluminum
Finish: Satin Anodized
Bullet Resistance: Level 3
Instructions Included
Glass Fabrication: Requires 3" to 4" (76 to 102 mm) Hole for Installation
