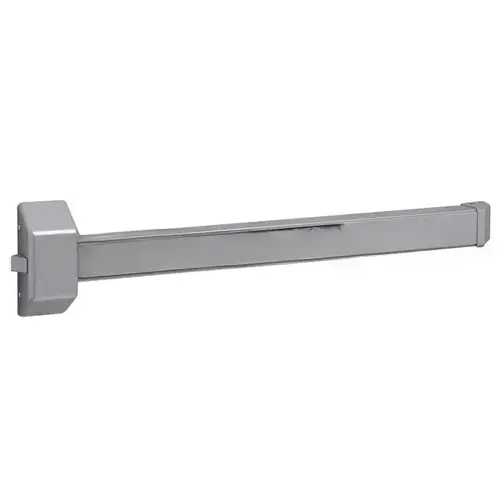

Sargent 12-3828F EN 30 Series 3828 Rim Type Exit Device, Aluminum Painted
Item #: 12-3828F EN by Sargent
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Outside Trim: 28 series lever and rose trims, GTB Pulls and plates, OB knob and trims and Thumb Piece trims
- Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
- Cover: steel
- Chassis: Nonferrous alloy
- Rail Assembly: Roll formed steel
- End Cap: Steel
- Hand: Non-handed
- Latchbolt: Stainless steel 3/4" (19mm) throw
- Strike: 649 packed standard
- Dogging Feature: Allen-type key furnished standard (non fire rated devices only)
Finish
Aluminum Painted
Function
Exit Only
Series
3828 Pushpad
Design
Rim Device
Strike
649 Strike
Color
Aluminum Painted
Physical Appearance
Wide Stile Pushpad
Fire Rated
Yes
Special Marks
Fire rated Variable
Device Type
Rim Device
Package Qty
1
Includes Trim
No
Device Length
36 Inch (3 Foot)
Color Code
689/US28
Handing
Non-Handed
Stile
Wide Stile
Finish Description
Aluminum Painted
Product Type
Exit Device
Length
3
ADA Approved
False
Application
Single and Double Door
Bolt Throw
3/4 Inch
Latch Type
Stainless Steel
ADA Compliant
No
Finish Family
Aluminum
Standards
ANSI/BHMA A156.3 - Grade 1; UL Listed
Stile Width
4-1/2 Inch
Trim Style
EO
Device Rating
Fire Rated
Chassis Cover Material
Steel
For Door Thickness
1-3/4 Inch
Chassis Material
Non-Ferrous Alloy
Function Family
Exit Only Device
Device Trim ANSI Function
01
Rail Material
Roll Formed Steel
Features
Chassis Mounted Unit Construction; Tapered Push Rail and Angled Covers; Steel Endcaps; Through-Bolts and Mortise Nuts
Manufacturer Parent
Assa Abloy
Mechanical Features
UL Fire Label Exit hardware
Sub-Series
EDT_Rim_Devices_sargent_3
Dimension
34"
Material
Brass
Door Thickness
1-3/4"
Door Width
33" to 36"
Manufacturer Warranty
Limited 3 Year Warranty
Includes Cylinder(s)
No
Minimum Stile Size
4-1/2" Minimum Stile Width
UL Listing Type
UL10C and UL305
Hazardous Material
No
Finish code
EN
No of inners
1
Product Overview
3828 SeriesRim Type Exit Device
The 3828 Series supports both single and double door applications and is ideal for warehouses and stairwell fire exits.
Benefits:- Steel endcaps and covers provided added durability
- Meets ANSI A156.3 Grade 1
- UL Listed
- 1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
- 28 Series Lever & Rose trims, GTB/HTB Pulls & Plates OB Knob trims
- Furnished standard with wood and machine screws Available with through bolts and mortise nuts
- Steel
- Nonferrous alloy
- Roll formed steel
- Steel
- Non handed
- Stainless steel 3/4" (19mm) throw
- 649 packed standard
- Allen-type key furnished standard (non fire rated devices only)
- EB, ED, EN, EP, EAB
- Maximum Door Opening
- 4'0" X 8'0" (1219mm X 2438mm)
- Maximum Door Opening
- 8'0" X 8'0" (2438mm X 2438mm)
- (A) 3 Hour, (B) 1 1/2
- (B) 1 1/2, (D) 1/2 Hour, (E) 3/4 Hour
- Note: Please contact door manufacturer for specifications regarding fire door construction
- * Limited for fire doors listed by UL for this use. NFPA requires an astragal on 3 hour applications. Vertical rod application will not work with astragal.
