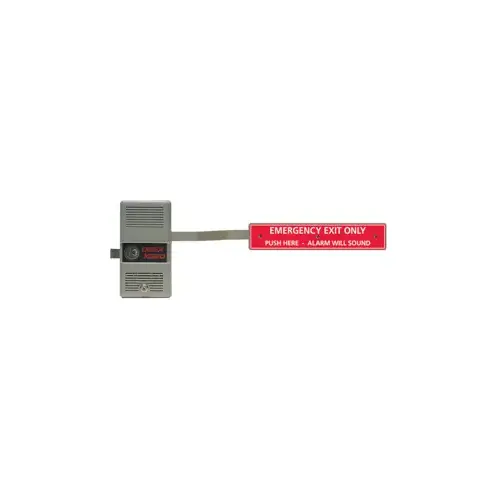

DETEX ECL-230D-PH Exit Control Lock
Item #: ECL-230D-PH by DETEX
In Stock $410.65 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Design
Long Bard
Handing
Non-Handed
Function
Exit Only
Finish
GRAY
Strike
ECL437K Strike
Fire Rated
No
Device Type
Rim
Electric Options
Alarm Kit Battery Powered
Product Type
Electronic Exit Device/Trim
Warranty
10 Year Mechanical; 3 Year Electrical Limited
Aluminium Bottle Contents
Swinging
ProductType
Automatic
Alternate Part Number-1
170545
Door Thickness
1-3/4" to 2-1/4"
Strike Type
ECL-437K Surface Strike
ADA Compliant
No
Included Components
9V Battery
Standards
UL Listed 988N-Grade 3; ADA; NFPA 101 for Life Safety, CA Title 19; ANSI/BHMA Certified; California State Fire Marshall 4140-0127:102
Device Rating
Panic Exit Hardware
Function Family
Part/Component
For Door Width
34 Inch
Electrified Features
100 Decibel Alarm Powered by 9 Volt Battery
Features
Single Point, 1" Throw Dead Bolt; Long Bar; Saw Resistant Dead Bolt; Corrosion Resistant Alloy Lock Body; Resetting the Alarm can only be Accomplished With a Control Key
Application
Single and Double Door
Hand
Non-Handed
Door Material
Wood; Hollow Metal; Aluminum
Manufacturer Parent
Detex
Sub-Series
ECL-230D-PH
The ECL-230 is a code compliant, battery alarmed, rugged deadbolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.
Product Features
- Single point, 1" throw dead bolt
- Saw resistant dead bolt
- Corrosion resistant alloy lock body
- 100 decibel alarm, powered by 9-volt battery (included)
- Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
- Resetting the alarm can only be accomplished with a control key
- Non-handed
- Locking and unlocking the dead bolt always arms and disarms the alarm
Technical Information
- Door Types - Wood, Hollow Metal or Aluminum
- Door Thickness - Fits standard 1-3/4" - 2-1/4"
- Minimum standard door width for ECL-230D-PH is 34"
- Machine and Sheet Metal Screws (Std.)
Detex Limited Warranty
10 Year Limited Manufacturers Warranty
