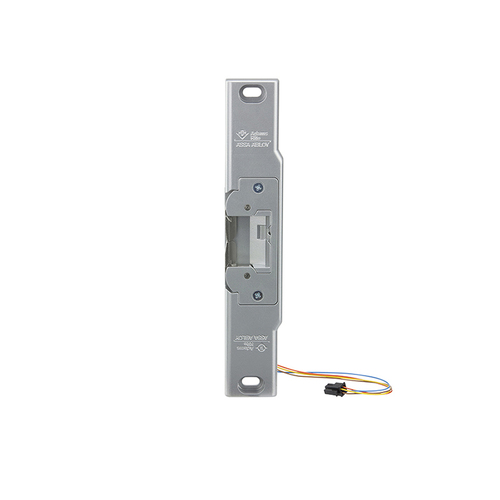

Adams Rite 74R2-130 74R2 Ultraline Electric Strike For Narrow Stile Rim Exit Devices, Satin Aluminum

Item #: 74R2-130 by Adams Rite

UPC #: 888512104092

See reviewsSee reviews
In Stock

$336.26

/each
SAVE UP TO 33.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Ultraline Electric Strike
  • Fail-Safe/Fail-Secure: Field selectable at time of installation.
  • Case: Approximately 1” x 3-3/8” x 1-1/16” deep.
  • Semi-Mortised Strike for Exit Devices
  • Ultra Compact Design and Stainless Steel Split-Jaw with 2400 lbs of Holding Force
  • Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
  • Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
  • Strikes Equipped With A Quick Connect Pug In Type Connector
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
  • Faceplate: Measures 1-1/4” x 4-7/8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
  • Voltage:
  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Finish

Satin Aluminum

Strike

Electric Strike

Use With

Rim Exit Devices

Color

Satin Aluminum Ritecoat Paint

Color Code

130

Function

Electric Strike

Amp Draw

.163A @ 12AC, .440A @ 12DC, .228A @ 16AC, .458A @ 16DC*, .084A @ 24AC, .230A @ 24DC

Faceplate Depth

1/2 In.

Faceplate Size

9 In. X 1-5/8 In.

Operating Voltage

12, 16, 24 VAC/DC

Package Qty

1

Switch Type

None

Finish Description

Satin Aluminum

Mount

Aluminum Jamb

Product Type

Electric Strike

Series

74R Series

Warranty

5 Year

Aluminium Bottle Contents

Swinging

ProductType

Manual

Voltage

24 VDC

For Use With

Narrow Stile Rim Exit Devices

Application

Aluminum Applications

Strike Opening

5/8" x 1-7/16" x 1/2"

ADA Compliant

No

Finish Family

Aluminum

Included Components

Mounting Plate Shims; Mounting Screws; Installation Instructions

Product Material

Stainless steel

Standards

ANSI/BHMA A156.18; ANSI/BHMA A156.31 Grade 1; UL 1034; UL 294; ULC-S319

Faceplate Dimension

1-5/8" x 9 x 1/2"

Case Dimensions

1-13/32" x 3-3/8" x 1-1/8"

Function Family

Electric Strike

Features

Designed for Narrow Stile Rim Exit Devices With 1/2" Pullman Latchbolts; Preload is Pressure Exerted on Doors by Air Conditioning Systems, Warping or Misaligned Hardware Which can Disable Common Electric Strikes

Strength

1500 (Static); 70 (Dynamic) lb; ft-lb

Current Draw

0.44A at 12VDC; 0.23A at 24VDC

Fire Rated

No

Latch Throw

1/2 Inch

Manufacturer Parent

Assa Abloy

Sub-Series

EAC_Electric_Strike_adams_rite_37

Grade

Grade 1

Handing

Non-Handed

Alternate Part Number-1

143036

Throw

1/2"

Faceplate Style

Surface 1/2 Thick

Compatibility, Lock Category

Rim Exit with Pullman Latch with no Deadlocking bolt

Fail Status

Field Selectable

Hazardous Material

No

Package Height

2"

Package Length

9.25"

Package Width

4"

Item Weight

2 lbs

Product Overview
UltraLine® 74R1Electric Strikes for Rim Exit Devices

74R1 Electric Strike is designed for rim exit devices with 3/4" (19.1 mm) Pullman latchbolts. For use in aluminum, hollow metal or wood applications. Function These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

Certifications:
  • UL 1034
  • UL 294
  • ULC-S319
  • ANSI/BHMA A156.18
  • ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1
Features: Case:
  • 1-13/32" x 3-3/8" x 1-1/16" deep
  • (35.7 mm x 85.7 mm x 27 mm deep)
Strike Opening:
  • Bolt retaining keeper is stainless steel.
  • 5/8" x 1-7/16" x 9/16" deep
  • (15.9 mm x 36.5 mm x 14.3 mm deep)
  • Strike accepts Pullman latch of exit devices without deadlocking bolts.
Faceplate:
  • Not separate
  • 1-3/4" x 9 x 11/16"
  • (44.5 mm x 228.6 mm x 17.5 mm)
Latchbolt Projection:
  • 3/4" (19.1 mm)
Standard Package:
  • Individually boxed with mounting plate shims, mounting screws, and installation instructions.
Shipping Weight:
  • 2 lbs (0.91 kg)
Electrical: Voltage:
  • Current Draw:
  • .44A at 12 VDC
  • .46A at 16 VDC*
  • .23A at 24 VDC
  • *Requires 16 DC adapter (P/N VA7400-16VDC)
Fail Safe | Fail Secure:
  • Field selectable fail safe/fail secure
Options:
  • Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.
  • ELX-ElectroLynx® Adapter: Connects Adams Rite electrified products to ElectroLynx system
  • 16 VDC Adapter: VA7400-16VDC required when using 16 VDC power
