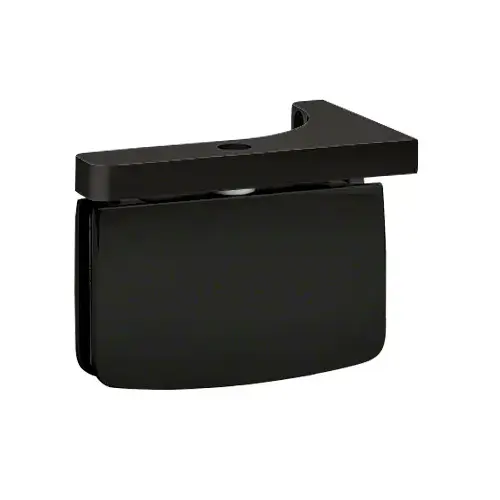

US Horizon H-PIVCGTWA-OB Adjustable Calypso Series Glass To Wall Mount Shower Door Pivot Hinge With Reversible "L" Bracket Oil Rubbed Bronze
Item #: H-PIVCGTWA-OB by U.S. Horizon Mfg., Inc.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable Feature Allows for Adjustment of Door Closing Position After Installation
- Machine engineered return spring hinge enables non-jerky movement of the door while opening and closing it
- Hardware includes matching finish stainless steel screws for installation
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Top and Bottom Mounting for Improved Frameless Look
- The premium quality finish promises rust protection even with long exposure to moisture
- Header Mount Hinges Designed for Use With Our Elite-Header System
- Self Center 0° Return With Adjustment Up to 90° IN or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Precision Wound Stainless Steel Return Springs
- Self-Closing From 25°
- Non-Mouse Ear Design for Added Adjustment
- Designed for 5/16" and 3/8" (8 and 10mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
Series
Adjustable Calypso
Hardware Includes
Matching Finish Stainless Steel Mounting Screws and Allen Wrench
Self-Closing
From 25 degree
Adjustable Angle Instructions
1. Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, retighten two screws (B)
Designed For
5/16" and 3/8" (8 and 10mm) Glass
Pack Size
1
Closing Type
Self Center 0° return with adjustment up to 90° in or out
Mounting Style
Glass to Wall mount with reversible "L" bracket
Hand Truck Size
Elite-Header system
Type
With Reversible "L" Bracket
Material
Solid Forged Brass
Cup Diameter (Each)
Weight - 100 lbs (45 kg) Width - 31" (787 mm)
Finish
Oil Rubbed Bronze
Product Overview
Adjustable Calypso Series Pivot Reversible L Bracket Shower Door Hinge is designed to work with Euro-Header or Elite-Header systems for your frameless shower enclosures. They enhance the all-glass look of the enclosure as these get mounted at the top and bottom of the glass. The hinge secures the glass safely in place and guarantees stability to the shower enclosure. It is a popular choice of homeowners and designers as they are durable for everyday use.
