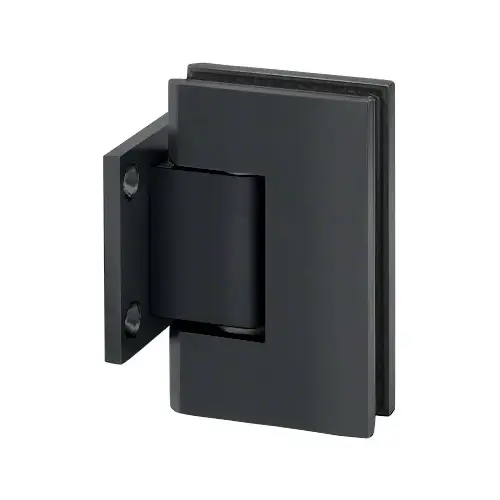

US Horizon HGTWAMB Adjustable Designer Series Wall Mount Hinge With Short Back Plate Matte Black
Item #: HGTWAMB by U.S. Horizon Mfg., Inc.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable Feature Allows for Adjustment of Door
- Installation of the hinge is not a cumbersome task anymore as the mounting hardware is included with the kit.
- The door closing position can be adjusted even after installation of the door
- Closing Position After Installation
- Top-quality metal used in the making of these hinges guarantees durability and longevity of the product
- Matching Finish Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
- Self-Centering 0° Return with Adjustment Up to 30° In or Out
- Solid Forged Brass Construction
- Precision Machined 300 Series Stainless Steel Components
- Dual Precision Wound Stainless Steel Return Springs
- Self-Closing from 25 Degrees
- Mouse Ear Design
- Designed for 3/8" and 1/2" (10 and 12 mm) Glass
- Wall Mount Hinges Include Matching Finish Stainless Steel Mounting Screws
- Allen Wrench Included
- Rated at 40 lbs (18 kg) per Hinge
Max Door Weight-3 Hinges (Lbs)
120
Max Door Width - 2 Hinges (IN)
30
Glazing Thickness
1/2, 3/8"
Max Door Weight-2 Hinges (Lbs)
80
Max Door Width - 3 Hinges (IN)
36
5 Degree Pre-Set
No
Self-Centering
Yes
Series
Adjustable Designer
Adjustable
Yes
Installation Steps
1. Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment 2. Once you have aligned the door, re-tighten two screws (B)
Plate Type
Short Back Plate
Hardware Includes
Matching Finish Stainless Steel Mounting Screws and Allen Wrench
Other Specifications
Maximum door weight: - 2-hinge - 80 lbs (36 kg) - 3-hinge - 120 lbs (54 kg) Maximum door width: - 2-hinge - 30" (762 mm) - 3-hinge - 36" (914 mm)
Self-Closing
From 25 Degrees
Designed For
3/8" and 1/2" (10 and 12 mm) Glass
Edge Profile
Square
Pack Size
1
Closing Type
Self-Centering 0° Return with Adjustment Up to 30° In or Out
Glass Fabrication Required
Cutout
Mounting Style
Wall mount
Back Plate
Short
Type
With Short Back Plate
Material
Solid Forged Brass
Finish
Matte Black
Product Overview
The Adjustable Designer Series Wall Mount HInge offers high functionality with its unique design and features. The hinge ensures the door closes itself smoothly from a 25-degree angle. The Stainless Steel screws available with the kit match with the hinge correctly to give a neat finish to the unit. They are the best choice if installing glass shower enclosures in homes or any other commercial establishment.
