Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

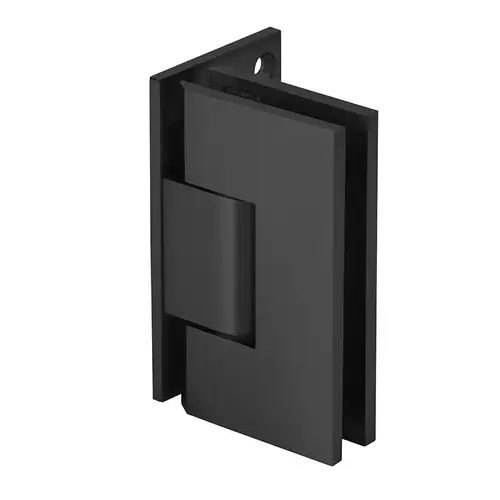

CRL V1E344MBLClick To Copy Matte Black Vienna Adjustable Wall Mount Offset Back Plate Hinge
Item #: V1E344MBL by CR Laurence
See reviewsSee reviews
In Stock
$98.37
/eachSAVE UP TO 9.84
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 305 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable up to 90 Degrees
- Offset Wall Mount Plate for Clean Site Line
- Available in Multiple Finishes
Height
3-15/16 in. (100 mm)
Finish
Matte Black
Mounting Type
Wall Mount
Material
Brass
Width
2-5/16 in. (59 mm)
Back Plate
Offset
Glazing Thickness
1/2 in. (12 mm)
Pre-Applied Tape
No
Adjustable
Yes
Series
Vienna
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Squared
Product Overview
The Vienna Offset Wall Mount Plate Adjustable Hinge adjusts to accommodate desired angles up to 90 degrees. Simply loosen the Allen Screws on the rear of the hinge, position the door to the desired closing position, then re-tighten the Allen Screws. For best results, use with a strike jamb and position the door to push against the jamb for a snug close. Offset Wall Mount Plate leaves clean site line.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
