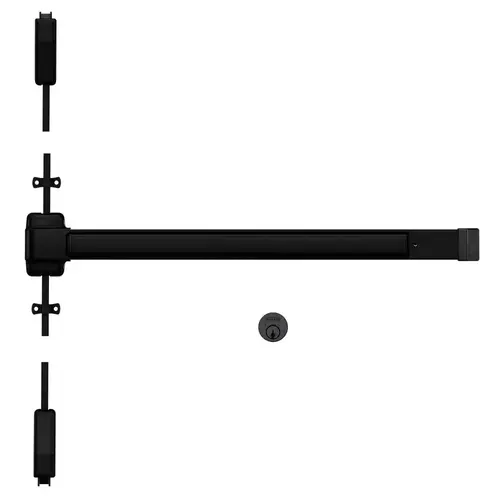

Von Duprin 2227NL-OP 3 622 Surface Vertical Rod Exit Devices Flat Black Coated
Item #: 2227NL-OP 3 622 by Von Duprin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
- Device centerline from finished floor: 39 13/16" (1011 mm)
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
- Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Color
Flat Black Coated
Color Code
622/US19
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
10.5
Package Length
36.75
Package Volume
1929.375
Package Width
5
Product Overview
Grade 1 Surface Vertical Rod Exit Bar, 36" Device, Fits 84" Door, Night Latch Function, Hex Dogging, Flat Black Coated Finish, Field Reversible
2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
