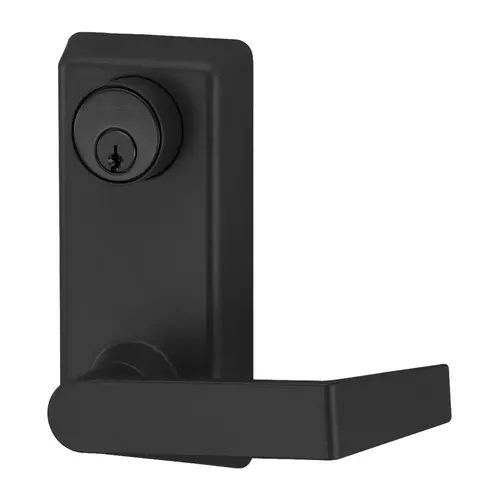

Von Duprin 230L-06 622 LHR Von Duprin Exit Device Trim Flat Black Coated
Item #: 230L-06 622 LHR by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
- Latch bolt: Deadlocking, 3 /4" (19 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: GBK glass bead kit AX accessible device
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black
Package Width
6
Package Volume
297
Package Length
11
Package Height
4.5
BAA Qualified
Yes
Origin
USA
Fire Rated
No
Color Code
622/US19
Color
Flat Black Coated
Handing
Left Hand Reverse
For Use With
22 Series Exit Devices
Hand
Left Hand Reverse
Function
L-Lever (Classroom)
Cylinder Type
Conventional or IC
Trim Design
Escutcheon with Lever
Finish Description
Matte Black
ADA Compliant
No
Finish Family
Black
Lever Style
06-Lever
Product Material
Cast Zinc
Standards
ANSI/BHMA A156.3 (2014) Grade 1
Trim Style
L
Cylinder Type Used
1-1/4" Mortise
Device Trim Function
Key Locks and Unlocks
Function Family
Classroom Exit Device Trim
Device Trim ANSI Function
08
Product Projection
2-5/8 Inch
Trim Plate Width
3 Inch
Trim Plate Height
6-3/8 Inch
Trim Plate Thickness
15/16 Inch
Features
Flexibility; Versatile Design Enables You to Add Functionality to Existing Devices in a Cost-Effective Way
Product Type
Exit Device Trim
Series
22 Series Trim
Manufacturer Parent
Allegion
Lever Style Family
Straight Return Lever
Sub-Series
EDT_Device_Trim_von_duprin_56
Product Overview
Grade 1 Exit Device Trim, Classroom Function, Lever with Escutcheon, Flat Black Coated Finish, Left Hand Reverse
22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.
Rim exit device for all types of single and double doors with mullion.
Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.
