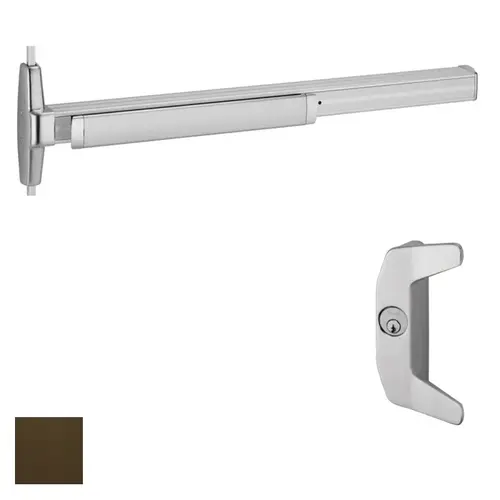

Von Duprin 3327A-NL-4FT-313-LHR-386NL 33A Series Surface Vertical Rod Exit Device With Trim Duranodic Dark Bronze

Item #: 3327A-NL-4FT-313-LHR-386NL by Von Duprin

See reviewsSee reviews

$5,471.20

/each
SAVE UP TO 547.12

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Duranodic Dark Bronze

Length

4

Handing

Left Hand Reverse

Function

NL-Night Latch (Key Retracts Latchbolt)

Door Thickness

1-3/4" (44 mm) to 2-1/4" (57 mm)

Device Length

48 Inch (4 Foot)

Stile

Narrow Stile

Door Height

7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.

Cylinder Type

Conventional or IC

Fire Rated

No

Trim Design

Wing Pull

Finish Description

Duranodic Dark Bronze

Device Type

Surface Vertical Rod Device

Dogging Options

Hex Key Dogging

Product Type

Exit Device With Trim

Series

3327A Pushbar

Sub-Series

EDT_Surface_Vertical_Rod_Devices_von_duprin_98

Manufacturer Parent

Allegion

Door Material

Metal; Wood

Features

Modular Design Allows Ability to Upgrade Device to Keep Up With Changing Technology; Designed for High Use and Abuse in Institutional Applications Like Schools, Hospitals and Government Facilities

Application

Double Doors

Hand

Left Hand Reverse

Bolt Throw

Top and Bottom bolt 5/8" Throw

Grip Size

8-1/2" x 4-5/16"

Mechanism Case Dimensions

2-1/4" x 2-1/4"

Recommended Door Undercut

1/4"

Device Trim Projection

2-7/16 Inch

For Door Width

2 Foot 8" to 4 Foot

Device Trim ANSI Function

03

Function Family

Night Latch

Device Centerline From Finished Floor

39-13/16 Inch

For Door Thickness

1-3/4" to 2-1/4"

Device Trim Function

Key Retracts Latchbolt

For Door Height

7 Foot

Device Rating

Panic Exit Hardware

Device Bar Projection

3-13/16" Pushbar Neutral; 3-1/16" Pushbar Depressed

Center Case Dimensions

8-13/16" x 2-13/32" x 1-9/16"

Cylinder Type Used

Rim

Escutcheon Plate Size

7-15/32" x 1-5/8"

Trim Style

386NL

Stile Width

2 Inch

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC-S132

Included Components

Fasteners and Sex Bolts

Finish Family

Dark Bronze

Latch Type

Deadlocking

Product Overview
3327A SeriesSurface Mounted Vertical Rod Device

3327A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 3527A has a smooth mechanism case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used.

3327A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Specifications: Finishes:
  • US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
Device lengths:
  • 2' - 2' (610 mm) Door size
  • 3' - 2'4" to 3' (660mm to 914 mm) door size
  • 4' - 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline from finished floor:
  • 39 13/16" (1006mm)
Center case dimensions:
  • 8 13/16" x 2 13/32" x 1 9/16"
  • (208mm x 62mm x 40mm)
Mechanism case dimensions:
  • 2 1/4" x 2 1/4"
  • (57mm x 57mm)
Projection:
  • Pushbar neutral – 3 13/16" (97 mm)
  • Pushbar depressed – 3 1/16" (78 mm)
Latch bolt:
  • Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
Door undercut:
  • 1/4" (7mm)
Top & bottom latch:
  • 4 1/2" x 2 1/8" x 1 1/2"
  • (114mm x 54mm x 38mm)
Vertical rods:
  • 1/2" square tubing, standard rods accommodate 7' (2134mm) door
  • Top rod length is 34 15/16" (887mm)
  • Bottom rod length is 31 1/4" (794mm)
  • Extension rods available 1' (205mm) or 3' (914mm) for doors over 7'
  • One piece top rod available for 8' (2438mm) -10' (3048mm) door
Fasteners & sex bolts (SNB):
  • Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
  • #425 SNB furnished standard for end case
  • #325 SNB furnished standard for EO (exit only device)
  • #325 SNB furnished for top and bottom latches
Electric options:
  • ALK - Alarm kit
  • CX - Chexit delayed exit
  • EL - Electric latch retraction
  • HD-EL - Electric latch retraction with hex dogging
  • QEL - Quiet electric latch retraction
  • RX - Request to exit, WP-RX waterproof option
  • LX - Latchbolt monitoring
  • LX-RX - Request to exit / latchbolt monitoring
  • RX-LC, LX-LC, LX-RX-LC
  • Low current option for RX, LX, LX-RX
  • SS - Signal switch
  • CON - Allegion Connect
Miscellaneous options:
  • GBK - Glass bead kit
  • PL - Pullman latch
  • PN - Pneumatic
  • LBR - Less bottom rod
  • SG - Safety glow
  • SEC - Security screws
  • SNB - Sex bolts
Dogging feature:
  • Hex dogging standard
  • CD - Cylinder dogging
  • LD - Less dogging
Strikes: Top:
  • 266 – Dull black
Bottom:
  • 248L4 & 304L
Unfinished:
  • Optional strikes
