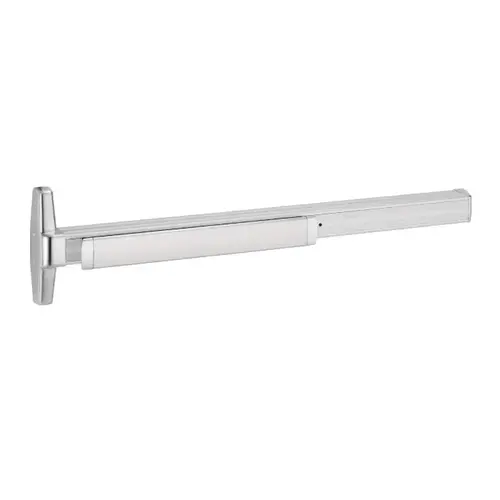

Von Duprin 3549A-EO-3FT-26D-7FT 35A Series Concealed Vertical Cable Exit Device, Satin Chrome
Item #: 3549A-EO-3FT-26D-7FT by Von Duprin
$4,681.60 /each
Buying in bulk
Roll over image to zoom in
Von Duprin 3549A-EO-3FT-26D-7FT 35A Series Concealed Vertical Cable Exit Device, Satin Chrome
Item #: 3549A-EO-3FT-26D-7FT by Von Duprin
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Chrome
Length
3
Handing
Non-Handed
Function
Exit Only
Device Length
36 Inch (3 Foot)
Stile
Narrow Stile
Door Height
7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.
Fire Rated
No
Finish Description
Satin Chrome
Device Type
Concealed Vertical Cable Device
Dogging Options
Hex Key Dogging
Device Height
7 Foot (84 Inches)
Trim Options
EO Exit Only
Product Type
Exit Device
Standards
ANSI A156.3 2008 Grade 1
Stile Width
2-1/8 Inch
Trim Style
EO
Center Case Dimensions
8-13/16 Inch x 2-13/32 Inch x 1-9/16 Inch
Device Bar Projection
Pushbar Neutral: 3-13/16 Inch; Pushbar Depressed: 3-1/16 Inch
Device Rating
Panic Exit Hardware
For Door Height
7 Foot
Device Trim Function
No Outside Trim
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4 Inch to 2-1/4 Inch
Device Centerline From Finished Floor
39-13/16 Inch
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
2 Foot 4 Inch to 3 Foot
Recommended Door Undercut
3/4 in Maximum- 24231516 Spacer Block Kit Needed for 3/4 in Undercut
Mechanism Case Dimensions
2-1/4 Inch x 2-1/4 Inch
Features
Grooved Case; Narrow Stile Push Pad; The Quiet One(R) Fluid Damper
Application
Single and Double Doors
Color Code
626/US26D
Bolt Throw
1/2 Inch
Latch Type
Deadlocking
Strike Type
Top: 249; Bottom: 349
ADA Compliant
No
Finish Family
Satin Chrome
Included Components
Fasteners and Sex Bolts (SNB)
Door Material
Metal
Manufacturer Parent
Allegion
Vertical Cable
7/32" Diameter Stainless Steel Cables
Sub-Series
EDT_Concealed_Ver_Rod_Devices_Von_Duprin_391
ANSI Function
01
3549A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 (LBL option 2014) Grade 1. The 3549A has a smooth mechanism case. The concealed vertical cable device is non-handed except when the SS (signal switch) option is used. 3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.
Specifications: Device lengths:- 2' - 2' (610 mm) Door size
- 3' - 2'4" to 3' (660mm to 914 mm) door size
- 4' - 2'8" to 4' (813 mm to 1219 mm) door size
- 39 13/16"
- (1006mm)
- 8 13/16" x 2 13/32" x 1 9/16"
- (208mm x 62mm x 40mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97 mm)
- Pushbar depressed – 3 1/16" (78 mm)
- Deadlocking anti-friction top & bottom bolt 1/2" (13mm) throw
- 3/4" (19mm) Maximum - 24231516 Spacer block kit needed for 3/4" (19mm) undercut
- 5 13/16" x 1 1/4" x 1 7/16"
- (147mm x 32mm x 37mm)
- 7/32" (6mm) Diameter stainless steel cables
- Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
- #425 SNB furnished standard for end case
- #325 SNB furnished standard for EO (exit only device)
- ALK - Alarm kit
- CX - Chexit delayed exit
- EL - Electric latch retraction
- HD-EL - Electric latch retraction with hex dogging
- QEL - Quiet electric latch retraction
- RX - Request to exit, WP-RX waterproof option
- *LX - Latchbolt monitoring
- *LX-RX - Request to exit / latchbolt monitoring
- *RX-LC, LX-LC, LX-RX-LC
- Low current option for RX, LX, LX-RX
- SS - Signal switch
- CON - Allegion Connect
- *For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latchbolt condition.
- AX - Accessible device
- GBK - Glass bead kit
- PL - Pullman latch
- PN - Pneumatic
- INS-2/INS-4 - Insulclad Kits 1/2" / 1/4" panels
- LBL - Less bottom latch
- SG - Safety glow
- SEC - Security screws
- SNB - Sex bolts
- Hex dogging standard
- CD - Cylinder dogging
- LD - Less dogging
- 249
- 349
