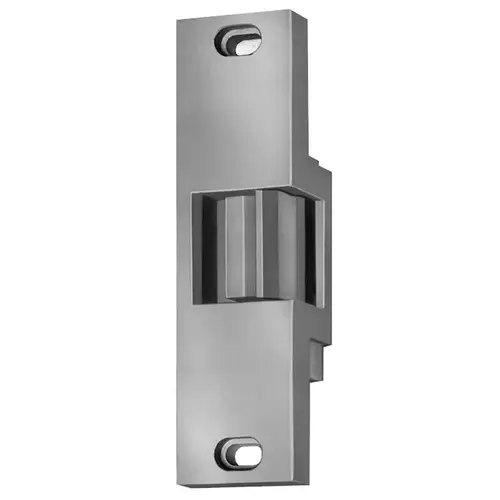

Von Duprin 6113-FSE-12VDC-32D 6113 Electric Strike, Satin Stainless Steel
Item #: 6113-FSE-12VDC-32D by Von Duprin
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Voltage
12 VDC
Finish
Satin Stainless Steel
Function
Fail Secure
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
For Use With
Rim Exit Devices
Application
Interior or Exterior Doors With Hollow Metal, Aluminum, or Wood Frames
Color Code
630/US32D
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
0.60A at 12VDC
Latch Throw
3/4 Inch
Product Height
6 Inch
Product Length
2-31/64 Inch
Product Width
1-5/8 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Product Material
Heavy-Duty Stainless Steel
Standards
UL 294 Listed; UL 1034 Listed; Fire Rated UL 10C to 3 Hours on Single Doors; 90 Minutes on Pair Doors; CSFM California State Fire Marshal Listed
Faceplate Dimension
1-5/8" x 6"
Function Family
Electric Strike
Features
Five Configurations Available for Rim Exit and Nightlatch Devices; Strike Box Allows Horizontal Adjustment; Two-Piece Plug Connectors are Furnished
Manufacturer Parent
Allegion
Sub-Series
6113-FSE-12VDC-32D
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed. 6100 Series electric door strikes are designed for use with a variety of rim exit devices including rim nightlatch. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6100 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs. Use 6100 Series electric strikes for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown on the next page. When using a lockset not listed or if retrofitting a strike to an existing application, please contact Von Duprin technical support for application assistance.
Features and Benefits:- Five configurations available for rim exit and nightlatch devices
- Heavy-duty stainless steel construction
- Strike box allows horizontal adjustment to compensate for misalignment of the door or frame
- 24 VDC standard with 12 VDC and AC operation optional
- Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
- Options include rectifier kit for VAC to VDC conversion, dual monitor switches, entry buzzer and Allegion Connect wire extension
- Six popular finishes available to suite with existing hardware
- Suitable for interior or exterior doors
- UL 10C 3-hour fire-rated electric strike (models 6111, 6112 and 6113 – fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- VD 3031
- 3/4"
- 6"
- 1 5/8"
- Rim exit device
- Single
- Double door with mullion
- Hollow metal
- Aluminum
- Wood
- UL 1034
- UL 10C Single Door - 3 hour
- UL 10C Pair Door - 90 minutes*
- *With manufacturer's mullion
- 1/2" projection blade stop shim 010055-XX available for use on cased opening or blade stop frames. Specify when using 55 rim devices. May also be used with vertical rod exit devices noted on previous page x Pullman latch LBR (non-fire rated).
