Fire Rated Surface Vertical Rod 3-Point Latch Device, Exit Only No Trim, 36" x 84", No Dogging, Grade 1, 710/313 Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Von Duprin 9857EO-F-710-36 Fire Rated Surface Vertical Rod 3-Point Latch Device, Exit Only No Trim, 36" x 84", No Dogging, Grade 1, 710/313 Dark Bronze

Item #: 9857EO-F-710-36 by Von Duprin

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

157776

Handing

Field Reversible

Function

Exit Only

Door Width

36"

Options

Fire Rated

Door Type

Aluminum, Hollow Metal, Wood

exit device type

Mortise

Dogging

None

Bar Style

Push Bar

Trim Style

Exit Only

Product Overview

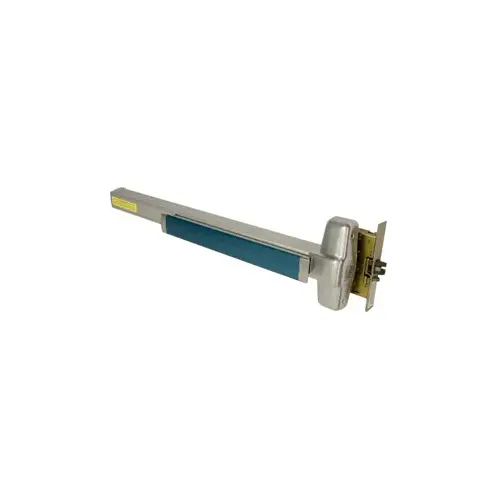

Von Duprin 9875/9975 Mortise Lock Device

9875/9975 Mortise lock device for all types of single or double doors, UL listed for Panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3/4" (121mm). The 9875 device has a smooth mechanism case and the 9975 device has a grooved case. The mortise lock device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch). See opposite page for available outside trim and device functions.

Specifications:

  • Device Functions
    • Device ships EO/DT/NL.
    • Field selectable.
    • For TP, K or L remove NL drive screw from device.
  • Device lengths
    • 3' - 2'4' to 3' (711mm to 914 mm) Door size
    • 4' - 2'10" to 4'(864 mm to 1219 mm) Door size
  • Device centerline from finished floor
    • 39 13/16" (1011 mm)
    • 39-11/16" (1008 mm) with mullion
  • Center case dimensions
    • 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions
    • 2-1/4" x 2-1/4" (57mm x 57mm)
  • Projection
    • Push bar neutral – 3-13/16" (97 mm)
    • Push bar depressed – 3-1/16" (78 mm)
  • Fasteners & sex bolts (SNB)
    • Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal or wood doors.
    • Optional 425 SNB available

    Electrical Options:

  • RX - Pushpad monitor switch
  • RX2 - Double pushpad monitor switch
  • E - Electric locking & unlocking trim
  • EL - Electric latch retraction
  • QEL - Quiet electric latch retraction
  • SS - Signal switch
  • CX - Chexit delayed exit
  • ALK - Alarm exit kit
  • WP-RX - Waterproof request to exit
  • CON - Allegion Connect

    • Mechanical Options:

  • -2 - Double cylinder
  • GBK - Glass bead kit
  • PN - Pneumatic latch retraction
  • SNB - Sex bolts
  • SEC - Security screws

    • Trim Functions:

  • DT - Dummy trim
  • EO - Exit only
  • L - Lever (classroom)
  • L-BE - Lever - blank escutcheon
  • L-DT - Lever, rigid - dummy trim
  • L-NL - Lever, rigid - night latch
  • NL - Night latch
  • HL - Hospital latch - Key locks & unlocks

    • Dogging Options:

  • Hex key dogging standard
  • CD - Cylinder dogging
  • SD - Special center case dogging
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator

    • Finishes:

  • US3
  • US3A
  • US4
  • US4A
  • US10
  • US26
  • US26D
  • US26D-AM Antimicrobial
  • US28
  • 313
  • 315
  • 643E
  • US15 and US32D available with 98 Series only.
