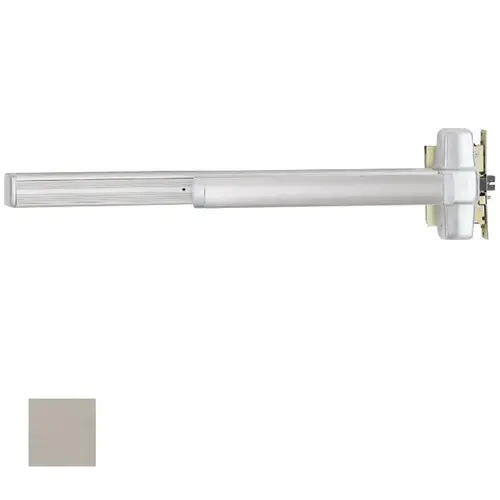

Von Duprin 9875EO-4FT-32D 98 Series Mortise Lock Exit Device - 4', Satin Stainless Steel
Item #: 9875EO-4FT-32D by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Length
4
Handing
Reversible
Function
Exit Only
Device Length
48 Inch (4 Foot)
Stile
Wide Stile
Fire Rated
No
Finish Description
Satin Stainless Steel
Device Type
Mortise Device
Dogging Options
Hex Key Dogging
Trim Options
EO Exit Only
Product Type
Exit Device
Series
9875 Pushbar
For Door Thickness
1-3/4" and 2-1/4"
Device Trim ANSI Function
01
Manufacturer Parent
Allegion
Stile Width
4-3/4 Inch
Device Rating
Panic Exit Hardware
Latch Type
Deadlocking
Function Description
Exit Only - No Trim
ANSI Function
01
Hand
Reversible
Sub-Series
EDT_Mortise_Devices_von_duprin_12
Trim Style
EO
Device Centerline From Finished Floor
39-13/16"; 39-11/16" with Mullion
Center Case Dimensions
8" x 2-3/4" x2-3/8"
Application
Single and Double Doors; Schools, Hospitals and Government Facilities
Device Trim Function
No Trim
Function Family
Exit Only-No Trim
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC-S132
Device Bar Projection
Pushbar Neutral: 3-13/16"; Pushbar Depressed: 3-1/16"
Features
Smooth Mechanism Case; The 7500 Mortise Lock is Equipped With a 3/4" Anti-Friction Latch Bolt Which is Field Reversible Without Removing the Lock From the Door
Strike Type
575 Dull Black
Bolt Throw
3/4 Inch
Mechanism Case Dimensions
2-1/4" x 2-1/4"
For Door Width
2 Foot 10" to 4 Foot
Door Material
Metal; Wood
Included Components
Fasteners and Sex Bolts (SNB)
Finish Family
Stainless Steel
Product Overview
9875 SeriesMortise lock device
9875 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3/4" (121mm). The 9875 device has a smooth mechanism case. The mortise lock device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch). The 7500 Mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Specifications: Device functions:- Device ships EO/DT/NL; Field selectable;
- For TP, K or L remove NL drive screw from device
- 3' - 2'4' to 3' (711mm to 914mm) Door size
- 4' - 2'10" to 4' (864mm to 1219mm) Door size
- 39 13/16" (1011mm)
- 39 11/16" (1008mm) with mullion
- 8" x 2 3/4" x2 3/8"
- (203mm x 70mm x 60mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97mm)
- Pushbar depressed – 3 1/16" (78mm)
- 605, 606, 612, 625, 626/626AM, 628, 710, 711 and 643e
- (619 and 630 available with 98 Series only)
- Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors.
- RX - Request to exit
- RX2 - Double request to exit
- E - Electric locking and unlocking trim/mortise lock
- EL - Electric latch retraction
- QEL - Quiet electric latch retraction
- SS - Signal switch
- CX - Chexit delayed exit
- ALK - Alarm exit kit
- WP-RX - Waterproof request to exit
- CON - Allegion Connect
- -2 - Double cylinder
- GBK - Glass bead kit
- PN - Pneumatic latch retraction
- SNB - Sex bolts
- SEC - Security screws
- WH - Weep holes
- Hex key dogging standard
- CD - Cylinder dogging
- CD-CX - Chexit cylinder dogging
- CDSI - Cylinder dogging with security indicator
- HDSI - Hex dogging with security indicator
- SD - Special center case dogging
- LD - Less dogging
- DI - Dogging indicator
- CI - Cylinder dogging indicator
- 575 – Dull black
