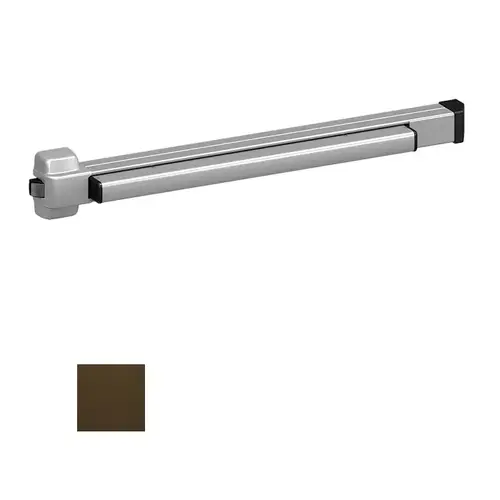

Von Duprin ALK-22EO-4FT-313 22 Series Rim Device With ALK-Alarm Kit, Dark Bronze Painted

Item #: ALK-22EO-4FT-313 by Von Duprin

See reviewsSee reviews
See reviews summary

$955.27

/each
SAVE UP TO 95.53
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Dark Bronze Painted

Length

4

Handing

Non-Handed

Function

Exit Only

Door Thickness

1-3/4" (44 mm) to 2-1/4" (57 mm)

Device Length

48 Inch (4 Foot)

Stile

Wide Stile

Fire Rated

No

Finish Description

Dark Bronze Painted

Device Type

Rim Device

Dogging Options

Hex Key Dogging

Door Style Width

3-5/8" (92 mm)

Master Pack Height

15.0000

Master Pack Length

39.7500

Master Pack Weight

52.8000

Master Pack Width

10.5000

Product Type

Exit Device With Trim

Series

22 Push Bar

Box Length

39.7500

Box Width

10.5000

Box Height

5.0000

Application

Single Doors and Double Doors

Bolt Throw

3/4 Inch

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

3-13/16 Inch

Trim Style

EO

Center Case Dimensions

4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch

Device Bar Projection

Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch

Device Rating

Panic Exit Hardware

For Door Height

7 Foot

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

For Door Width

4 Foot

Mechanism Case Dimensions

2" x 2-3/8"

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Dark Bronze

ANSI Function

01

Features

Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings

Manufacturer Parent

Allegion

Sub-Series

EDT_Rim_Devices_von_duprin_106

Product Overview
22 SeriesSurface Mounted Vertical Rod Device

22 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

Specifications: Finishes:
  • SP28 & SP313
Device functions:
  • Ships ready for all functions, EO, DT, NL, TP, K, L
Device lengths:
  • 3' (914 mm)
  • 4' (1219 mm)
Door height:
  • 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm)
  • 12" (205 mm), door height
  • 36" (914 mm), door height
Device centerline from finished floor:
  • 39 13/16" (1011 mm)
Center case dimensions:
  • 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case dimensions:
  • 2" (51 mm) x 3 3/4" (95 mm)
Projection push bar:
  • Push bar neutral - 3 3/4" (95 mm)
  • Push bar depressed - 3" (76 mm)
Door undercut:
  • 1/4" (7 mm) from finished floor recommended
  • 3/4" (19mm) maximum or 1/8" (3mm) from threshold
Latch bolt:
  • Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
Fasteners & sex bolts (SNB):
  • Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors.
Dogging feature:
  • Hex key dogging standard
Strikes:
  • 299 – Dull black
  • Bottom 248L-4 and 304L – unfinished
Minimum door opening: Stop height:
  • 1/2"
  • 5/8"
Strike:
  • N/A
  • N/A
Single door:
  • Yes
  • Yes
Double door w/mullion:
  • Vert. x Vert.
  • Vert. x Vert.
Minimum door opening for 3' device*:
*For 4' device, add 6" (152 mm)
  • 25.875" (657 mm)
  • 26.000" (664 mm)
Minimum door opening w/ALK*:
*For 4' device, add 6" (152 mm)
  • 32.625" (829 mm)
  • 32.750" (832 mm)
