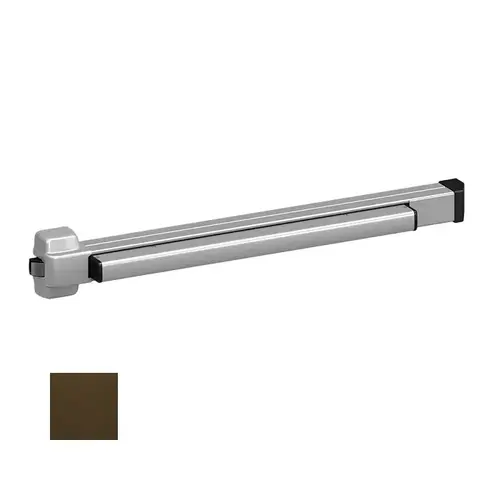

Von Duprin ALK-22NL-OP-3FT-313-110NL-MD 22 Series Rim Device With ALK-Alarm Kit and Trim, Dark Bronze Painted
Item #: ALK-22NL-OP-3FT-313-110NL-MD by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Dark Bronze Painted
Length
3
Handing
Non-Handed
Function
NL-OP-Night Latch Cylinder Optional Pull
Door Thickness
1-3/4" (44 mm) to 2-1/4" (57 mm)
Device Length
36 Inch (3 Foot)
Stile
Wide Stile
Cylinder Type
Conventional or IC
Fire Rated
No
Trim Design
Night Latch Cylinder
Finish Description
Dark Bronze Painted
Device Type
Rim Device
Dogging Options
Hex Key Dogging
Door Style Width
3-5/8" (92 mm)
Master Pack Height
16.2500
Master Pack Length
38.0000
Master Pack Weight
43.6500
Master Pack Width
11.2500
Trim Options
NL-OP Night Latch Cylinder Assembly
Product Type
Exit Device With Trim
Series
22 Push Bar
Box Length
36.7500
Box Width
10.5000
Box Height
5.0000
Bolt Throw
3/4 Inch
Application
Single Doors and Double Doors
Latch Type
Deadlocking
ADA Compliant
No
Finish Family
Dark Bronze
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132
Stile Width
3-13/16 Inch
Cylinder Type Used
Rim
Center Case Dimensions
4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch
Device Bar Projection
Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch
Device Rating
Panic Exit Hardware
For Door Height
7 Foot
Device Trim Function
Key Retracts Latch Bolt, Optional Pull Required
Device Centerline From Finished Floor
39-13/16 Inch; 39-11/16 Inch with Mullion
Function Family
Night Latch
Device Trim ANSI Function
03
Mechanism Case Dimensions
2 Inch x 2-3/8 Inch
Features
Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings
Door Material
Metal
Manufacturer Parent
Allegion
Sub-Series
EDT_Rim_Devices_von_duprin_121
Product Overview
22 Series Rim exit device
22 Rim exit device - for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.
Finishes- SP28
- SP313
- Device functions:Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths:
- 3' (914 mm)
- 4' (1219 mm)
- Device centerline from finished floor:
- 39 13/16" (1011 mm)
- 39 11/16" (1008 mm) with mullion
- Center case dimensions:
- 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions:
- 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar:
- Push bar neutral - 3 3/4" (95 mm)
- Push bar depressed - 3" (76 mm)
- Latch bolt:Deadlocking, 3/4" (19 mm) throw
- Fasteners and sex bolts (SNB):Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
LX: Latchbolt monitor switch
- Signals use of opening
- SPDT switch to monitor latchbolt
RX: Pushpad monitor switch
- Signals use of an opening
- SPDT switch to monitor pushpad
RX2: Double pushpad monitor switch
- Uses two RX switches
ALK: Alarm exit kit
- Unauthorized opening triggers 85-decibel horn
- Set in armed or disarmed mode by key
CON: Allegion Connect
- Common connectors to connect various door hardware all the way to the power supply
GBK: Glass bead kit
AX: Accessible device
- UL certified to meet new 5 lb. maximum operating force requirement
- Exceeds ANSI/BHMA requirements
- Hex key dogging standard.
LD: Less dogging
Strike: 299:Dull black
