AX-22EO Rim Exit Device, Aluminum Painted

Roll over image to zoom in

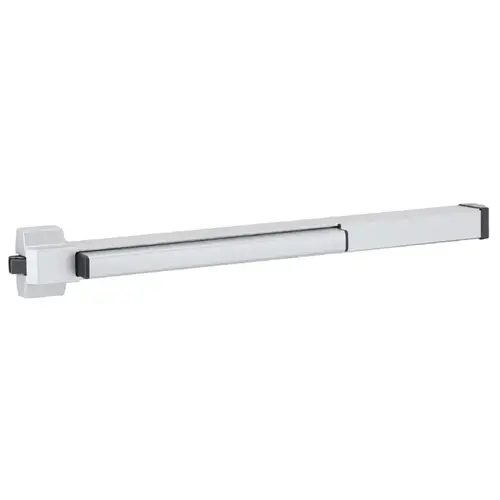

Von Duprin AX-22EO-3FT-28 AX-22EO Rim Exit Device, Aluminum Painted

Item #: AX-22EO-3FT-28 by Von Duprin

See reviewsSee reviews
In Stock

$1,078.21

/each
SAVE UP TO 107.82

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Master Pack Weight

34.8500

Finish

Aluminum Painted

Master Pack Height

16.2500

Handing

Non-Handed

Finish Description

Aluminum Painted

Stile

Wide Stile

Master Pack Length

38.0000

Function

Exit Only

Fire Rated

No

Master Pack Width

11.2500

Box Width

10.5000

Device Type

Rim Device

Mechanical Options

AX-Accessible Device

Length

3

Device Length

36 Inch (3 Foot)

Door Thickness

1-3/4" (44 mm) to 2-1/4" (57 mm)

Trim Options

EO Exit Only

Box Height

5.0000

Product Type

Exit Device

Box Length

36.7500

Dogging Options

Hex Key Dogging

Series

22 Push Bar

Door Style Width

3-5/8" (92 mm)

Application

Single Doors and Double Doors

Bolt Throw

3/4 Inch

ANSI Function

01

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Aluminum

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

3-13/16 Inch

Trim Style

EO

Center Case Dimensions

4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch

Device Bar Projection

Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch

Device Rating

Panic Exit Hardware

For Door Height

7 Foot

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

Mechanism Case Dimensions

2" x 2-3/8"

Features

Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings

Manufacturer Parent

Allegion

Mechanical Features

Accessible Device

Sub-Series

AX-22EO-3FT-28

Product Overview
22 Series Rim exit device

22 Rim exit device - for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.

Finishes
  • SP28
  • SP313
Specifications:
  • Device functions:Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths:
    • 3' (914 mm)
    • 4' (1219 mm)
  • Device centerline from finished floor:
    • 39 13/16" (1011 mm)
    • 39 11/16" (1008 mm) with mullion
  • Center case dimensions:
    • 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions:
    • 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar:
    • Push bar neutral - 3 3/4" (95 mm)
    • Push bar depressed - 3" (76 mm)
  • Latch bolt:Deadlocking, 3/4" (19 mm) throw
  • Fasteners and sex bolts (SNB):Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
Electric options

LX: Latchbolt monitor switch

  • Signals use of opening
  • SPDT switch to monitor latchbolt

RX: Pushpad monitor switch

  • Signals use of an opening
  • SPDT switch to monitor pushpad

RX2: Double pushpad monitor switch

  • Uses two RX switches

ALK: Alarm exit kit

  • Unauthorized opening triggers 85-decibel horn
  • Set in armed or disarmed mode by key

CON: Allegion Connect

  • Common connectors to connect various door hardware all the way to the power supply
Mechanical options

GBK: Glass bead kit

AX: Accessible device

  • UL certified to meet new 5 lb. maximum operating force requirement
  • Exceeds ANSI/BHMA requirements
Dogging/Strikes
  • Hex key dogging standard.

LD: Less dogging

Strike: 299:Dull black
