AX-22EO-F Rim Fire Exit Device

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

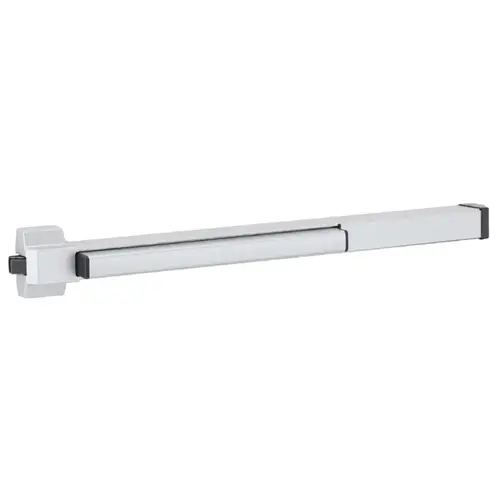

Von Duprin AX-22EO-F-3FT-28 AX-22EO-F Rim Fire Exit Device

Item #: AX-22EO-F-3FT-28 by Von Duprin

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$560.29

/each
SAVE UP TO 56.03
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Sub-Series

AX-22EO-3FT-28

Mechanical Features

Accessible Device

Manufacturer Parent

Allegion

Series

22 Push Bar

Product Type

Exit Device

Features

Push Pad; Wide Stile; Economical Alternative That Incorporates a Modern Touch Bar Styling for Medium to Low Traffic Openings

Mechanism Case Dimensions

2" x 2-3/8"

Device Trim ANSI Function

01

Function Family

Exit Only-No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Description

Exit Only - No Trim

Device Trim Function

Exit Only (No Outside Trim)

For Door Height

7 Foot

Device Rating

Fire Exit Hardware

Device Bar Projection

Push Bar Neutral: 3-11/16 Inch; Push Bar Depressed: 2-7/8 Inch

Center Case Dimensions

4-5/32 Inch x 3-3/16 Inch x 2-3/8 Inch

Stile Width

3-5/8" (92 mm)

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Finish Family

Aluminum

ADA Compliant

No

Mechanical Options

AX-Accessible Device

Latch Type

Deadlocking

Dogging Options

Hex Key Dogging

Device Type

Rim Device

ANSI Function

01

Finish Description

Aluminum Painted

Fire Rated

Yes

Stile

Wide Stile

Bolt Throw

3/4 Inch

Device Length

36 Inch (3 Foot)

Door Thickness

1-3/4" (44 mm) to 2-1/4" (57 mm)

Function

Exit Only

Color Code

689/ALUM/SP28

Length

3 Foot Device

Application

Single Doors and Double Doors

Product Overview
AX-Accessible Device, 22 Series Push Bar, Rim, Exit Only (No Outside Trim), Fire Rated, 3 ft Device, SP28 Sprayed Aluminum
