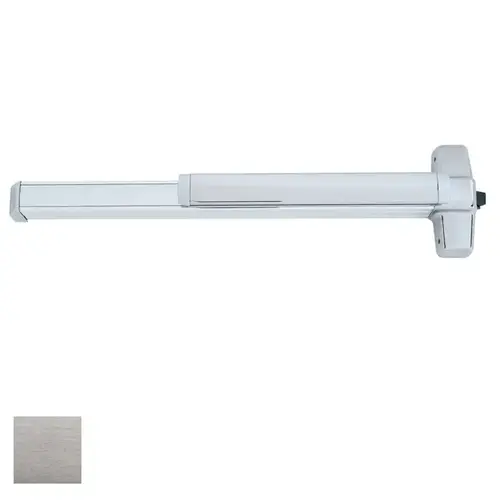

Von Duprin CXA-98EO-F-3FT-26D CXA-98EO-F Rim Fire Exit Device Satin Chrome
Item #: CXA-98EO-F-3FT-26D by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Length
3
Handing
Non-Handed
Function
Exit Only
Device Length
36 Inch (3 Foot)
Stile
Wide Stile
Fire Rated
Yes
Finish Description
Satin Chrome
Device Type
Rim Device
Dogging Options
Less Dogging
Electric Options
CX-Chexit
Trim Options
EO Exit Only
Product Type
Exit Device
Series
98 Pushbar
Application
Single Doors and Double Doors With Mullion; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings
Color Code
626/US26D
Bolt Throw
3/4 Inch
ANSI Function
01
Latch Type
Deadlocking
ADA Compliant
No
Finish Family
Satin Chrome
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132
Stile Width
4-1/2 Inch
Trim Style
EO
Center Case Dimensions
8 Inch x 2-3/4 Inch x 2-3/8 Inch
Device Bar Projection
Push Bar Neutral: 3-13/16 Inch; Push Bar Depressed: 3-1/16 Inch
Device Rating
Fire Exit Hardware
Device Trim Function
Exit Only
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4 Inch
Device Centerline From Finished Floor
39-13/16 Inch; 39-11/16 Inch with Mullion
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
3 Foot
Mechanism Case Dimensions
2-1/4" x 2-1/4"
Features
Push Pad; Wide Stile; Heavy Duty
Manufacturer Parent
Allegion
Sub-Series
CXA-98EO-F-3FT-26D
Product Overview
98-F SeriesRim exit device
98-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).
Specifications: Device functions:- Device ships EO/DT/N; Field selectable;
- For TP, K or L remove NL drive screw from device
- 3' - 2'4' to 3' (711mm to 914mm) Door size
- 4' - 2'10" to 4' (864mm to 1219mm) Door size
- 39 13/16" (1011mm)
- 39 11/16" (1008mm) with mullion
- 8" x 2 3/4" x 2 3/8"
- (203mm x 70mm x 60mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97mm)
- Pushbar depressed – 3 1/16" (78mm)
- Deadlocking, 3/4" (19mm) throw
- 605, 606, 612, 626/626AM, 628, 710, 711 and 643e
- (619 and 630 available with 98 Series only)
- Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
- LX - Latch bolt monitor switch
- RX - Request to exit
- RX2 - Double request to exit
- E - Electric locking and unlocking trim
- EL - Electric latch retraction
- QEL - Quiet electric latch retraction
- SS - Signal switch
- CX - Chexit delayed exit
- ALK - Alarm exit kit
- WP-RX - Waterproof request to exit
- CON - Allegion Connect
- -2 - Double cylinder
- -2 - Double cylinder with security indicator
- AX - Accessible device
- GBK - Glass bead kit
- PN - Pneumatic latch retraction
- QM - Quiet mechanical
- SNB - Sex bolts
- SEC - Security screws
- SLM - Special laminate material blocking
- WH - Weep holes
- XP - Extra protection
- No mechanical dogging;
- EL and QEL options available
- 299F – Dull black, 499F with mullions
