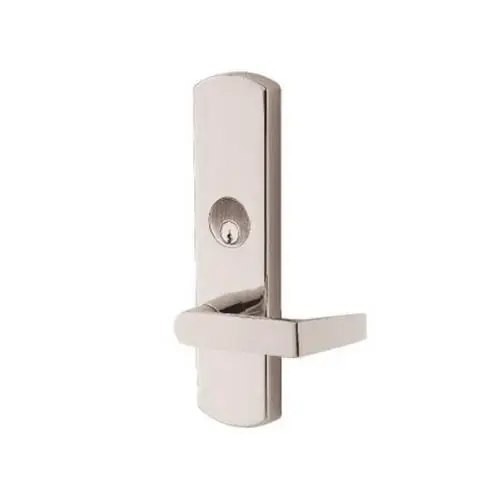

Von Duprin E996L-R/V-17-26D-LHR E996L Electrified Lever Trim for Rim/Vertical LHR Satin Chrome
Item #: E996L-R/V-17-26D-LHR by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
24 Volt
Finish
Satin Chrome
Handing
Left Hand Reverse
Function
Fail Safe or Secure
Cylinder Type
Conventional or IC
Finish Description
Satin Chrome
Lever Style
17-Lever
Product Type
Exit Device Trim
Series
98/99 Series Trim
Color Code
626/US26D
For Use With
98/99 Series Exit Device
Hand
Left Hand Reverse
ADA Compliant
No
Finish Family
Satin Chrome
Trim Style
L
Cylinder Type Used
Rim or Vertical Device
Device Trim Function
Key Locks and Unlocks
Function Family
Electrified Exit Device Trim
Device Trim ANSI Function
08
Product Projection
2-7/8 Inch
Trim Plate Width
2-3/4 Inch
Trim Plate Height
10-3/4 Inch
Trim Plate Thickness
27/32 Inch
Features
Flexibility; Versatile Design Enables You to Add Functionality to Existing Devices in a Cost-Effective Way; Electrified Lever
Manufacturer Parent
Allegion
Lever Length-Inches
4.7 Inch
Lever Height
2.3 Inch
Lever Style Family
Curved Return Lever
Sub-Series
E996L-R/V-17-26D-LHR
Product Overview
E996L SeriesElectrified breakaway lever trim
E996L Electrified Breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented Breakaway trim design.
The 24VDC solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. When electrically unlocked the unit operates as a normal lever trim. When electrically locked, the lever feels locked, but when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.
The E996L is available in standard either in a fail safe (FS) or fail secure (FSE) condition, but can also be field converted where allowed. The trim can be ordered with a device, added to an existing 98/99 series device application, or a conversion kit can be added to an existing 996L Breakaway lever trim. On new construction applications, the E996L trim will require less door prep.
The E996L is available with a blank escutcheon (BE) function, or with cylinder operation for night latch (NL) function.
The E996L electrified trim replaces the current "E" electric feature on 98/99 series rim devices. Consult factory for requirements.
Features and Benefits:- Fail safe or fail secure, can also be converted in the field
- Conversion kits available to add to existing 996L trim
- Available with blank escutcheon function or cylinder operation for night latch function
- 24VDC
- 0.22 AMPS
- 06 lever is furnished standard
- US3, US4, US10, US10B, SP313, US26, US26D, SPBLK, US15
- Power input for E996L is 24 VDC
- Two wires on the trim are non-polarized (18 AWG minimum)
- Field reversible handing
- 24 VDC continuous duty solenoid
- Fail safe (locked when energized, unlocked when de-energized or during power failure). Specify with suffix “FS.”
- Fail secure (unlocked when energized, locked when de-energized or during power failure). Specify with suffix “FSE.”
- 24 VAC (with SO option)
- 12 VDC
- 12 VAC (with SO option)
- Note: Some fire codes will require “Fail Safe” (FS) operation for stairwell doors. Be sure to specify the correct operation for your application.
