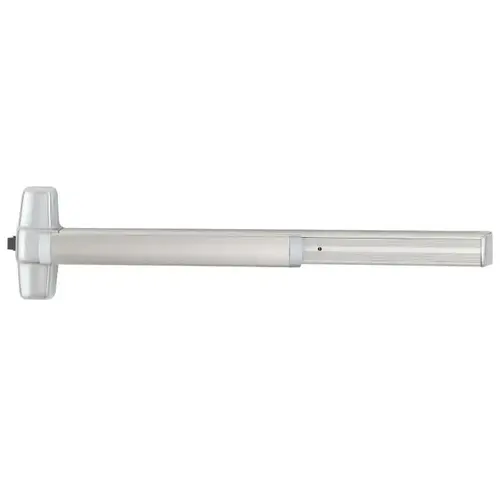

Von Duprin EL-AX-PA-99-EO-3FT-26D 99 Series Rim Exit Device
Item #: EL-AX-PA-99-EO-3FT-26D by Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Door Thickness
1-3/4 Inch
Device Trim ANSI Function
01
Manufacturer Parent
Allegion
Device Rating
Panic Exit Hardware
Finish Description
Satin Chrome
Stile
Wide Stile
Function
Exit Only
Latch Type
Deadlocking
Function Description
Exit Only - No Trim
ANSI Function
01
Sub-Series
EL-AX-PA-99-EO-3FT
Fire Rated
No
Trim Style
EO
ADA Compliant
No
Device Centerline From Finished Floor
39-13/16 Inch; 39-11/16 Inch with Mullion
Center Case Dimensions
8 Inch x 2 3/4 Inch x 2 3/8 Inch
Application
Single Doors and Double Doors
Device Type
Rim Device
Mechanical Options
AX-Accessible Device
Length
3 Foot Device
Device Trim Function
Exit Only
Function Family
Exit Only-No Trim
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132
Device Bar Projection
Pushbar Neutral: 3-13/16 Inch; Pushbar Depressed: 3-1/16 Inch
Device Length
36 Inch (3 Foot)
Door Thickness
1 3/4"
Trim Options
EO Exit Only
Product Type
Exit Device
Electric Options
EL-Electric Latch Retraction
Features
High Performance, Wide Stile Heavy Duty Devices Featuring Push Pads That Offer Many Customizable Options; Smooth
Color Code
626/US26D
Mechanical Features
Accessible Device
Bolt Throw
3/4 Inch
Dogging Options
Hex Key Dogging
Mechanism Case Dimensions
2-1/4" x 2-1/4"
Series
99 Pushbar
Door Style Width
4 1/2"
Finish Family
Satin Chrome
Product Overview
Electric Latch Retraction, Accessible Device, Pushbar Armor, 99 Series Rim Exit Device, Exit Only (No Outside Trim), 3' Device, US26D Satin Chrome
