The IR Von Duprin 33A Series Rim Panic Exit Device is designed with a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One" technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

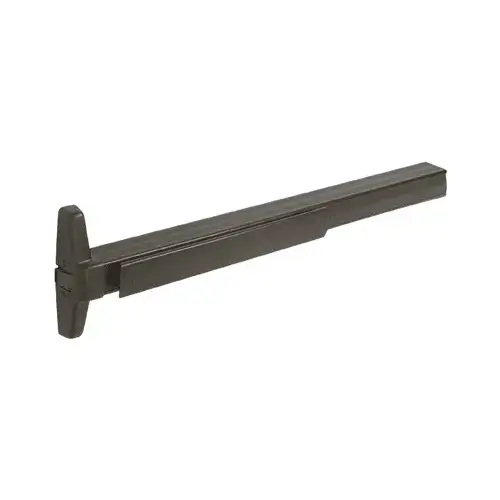

Von Duprin 33AE03313 Rim Panic Exit Device with Grooved Case Dark Bronze Finish 36" Exit Only
Item #: 33AE03313 by Von Duprin
See reviewsSee reviews
In Stock
$1,224.83
/eachSAVE UP TO 122.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available with Smooth or Grooved Housing
- Non-Handed
- One Piece Center Case Cover
Size
36" (914 mm)
Brand
Von Duprin®
Finish
Dark Bronze
Certification
ANSI/BHMA 156.3 Grade 1
Finish/Color
Dark Bronze
Series
33A
Panic Bar Width Net
35-3/8
Push Pad Width
18
Recommended Door Type
Aluminum, Narrow, Medium, Wide Style, Wood, Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Panic Head Base Width
2-11/16
Panic Bar Base Height (Inches)
2-1/4
Panic Type
Rim Exit Device
Replacement Parts
DC7205SCKDDU, DC7015SC8KDDU, Special Order
Panic Head Height (Inches)
8-3/16
Panic Bar Projection (Inches)
3-13/16
Panic Body Style
Grooved
Panic Dogging
Standard Hex Key Dogging
Material
Aluminum
Handing
Non Handed
Model
33AEO
Door Thickness
1-3/4
Door Width
36
UL Listed
Yes
Includes
Mounting Hardware
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
2-1/4 in. (57.2 mm)
Panic Head Height
8-3/16 in. (208 mm)
Panic Bar Projection
3-13/16 in. (96.8 mm)
Product Overview
The IR Von Duprin 33A Series Rim Panic Exit Device is designed with a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One" technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
