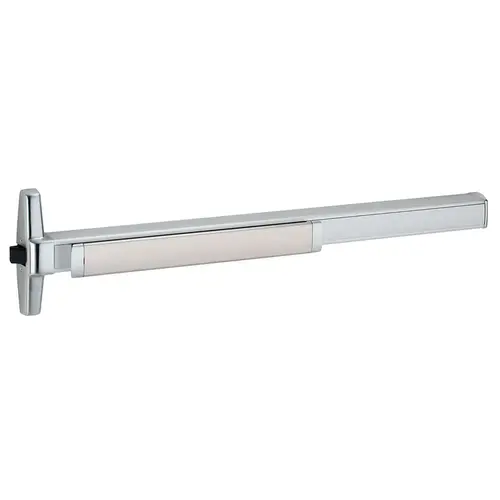

Von Duprin RXQEL35ANL-OP 3 26D Exit Device Satin Chrome
Item #: RXQEL35ANL-OP 3 26D by Von Duprin
Brand: Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Device lengths: 3' 2' 4" to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm)
- Door size: Device centerline from finished floor 39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion
- Center case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar Depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3 /4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes 13 /4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Color
Satin Chrome
Color Code
626/US26D
Product Overview
Rim Exit Device, Night Latch, Optional Pull, Quiet Electronic Latch retraction, Request to Exit Switch, Satin Chrome
33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions
Devices are ANSI A156.3 – 2001 Grade 1.
The 35A has a smooth mechanism case and rim device is non-handed except when the SS (signal switch) option is used.
