Von Duprin Concealed Vertical Rod Exit Devices Satin Brass

Roll over image to zoom in

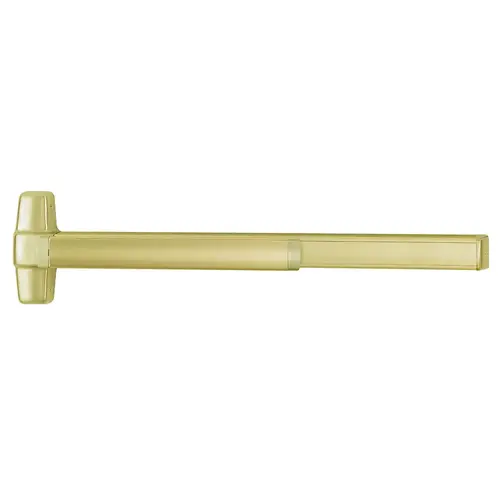

Von Duprin SS9848L-BE-05-F 4 US4 LHR Von Duprin Concealed Vertical Rod Exit Devices Satin Brass

Item #: SS9848L-BE-05-F 4 US4 LHR by Von Duprin

See reviews See reviews

$3,887.56 /each

SAVE UP TO 388.76

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top bolt, 3/4" (19mm) throw Deadlocking bottom bolt, 1 1/2" (38mm) throw
  • Door undercut: 3 /4" (19mm) maximum, more than 1 /4" minimum
  • Top & bottom Latch case: 4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Package Width

5

Package Volume

2572.5

Package Length

49

Package Height

10.5

BAA Qualified

Yes

Origin

USA

Color Code

606/US4

Color

Satin Brass

Handing

Left Hand Reverse

Grade 1 Concealed Vertical Rod Exit Bar, 48" Fire-Rated Device, 80" to 100" Door Height, Passage Function, 05 Lever with Escutcheon, Signal Switch, Less Dogging, Emergency Exit Only, Push to Open & Sound Alarm Touchbar, Satin Brass Finish, Left Hand Reverse

9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Covers stock hollow metal doors with 86 or 161 cutouts.

The 9848 Series has a smooth mechanism case that is non-handed with some exceptions.

The 9848 Concealed verticle rod device is for use on single or double metal doors and is UL listed for panic exit hardware.
