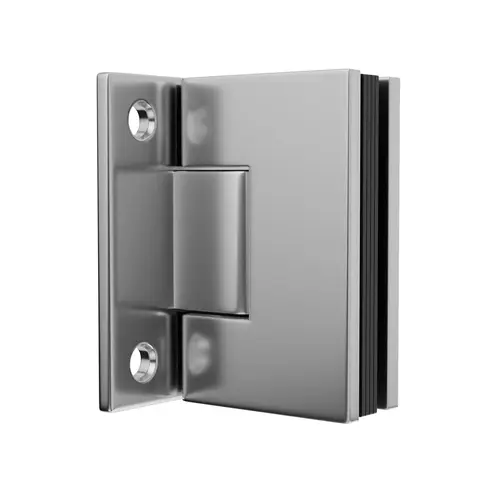

Brixwell H-GTWA-FP-SC Adjustable Wall Mount Hinge With Full Mounting Plate Satin Chrome Finish
Item #: H-GTWA-FP-SC by Brixwell
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Satin Chrome finish complements bathroom hardware, making this shower hinge both functional and decorative.
- Measures 3-9/16" height x 2-3/16" width with full mounting plate, offering a compact wall hinge size for shower doors.
- Designed for 3/8" and 1/2" glass, this glass hinge supports standard glazing used in frameless shower enclosures.
- Made of solid forged brass with stainless steel pins, this Mounting plate hinge ensures lasting durability.
- Includes stainless steel hex clamping screws and crosshead screw, making this shower hardware installation-ready.
- Features 2-3/4" vertical and 1-3/8" horizontal hole spacing for proper alignment of this hinge bracket.
- Supports up to 80 lbs with 2 hinges or 120 lbs with 3, making this door hinge strong for wide shower doors.
Height
3-9/16" (90mm)
Finish
Satin Chrome
Mounting Type
Glass To Wall
Material
Solid Forged Brass
Mounting Plate Width
2" (50mm)
Width
2-3/16" (55mm)
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Square
Self-Closing
From 25 Degrees
Hardware Includes
SS Hex Clamping Screws and Wrench, CrossHead Screw
Mounting Plate Thickness
5/32" (4mm)
Design
Mouse Ear
Plate Thickness
3/16" (5mm)
Max Door Width 3 Hinges
36" (914mm)
Hole Center (Vertical)
2-3/4" (70mm)
Self Centering Function
0 Degree Return Adjustment to 30 Degrees In or Out
Per Hinge Rating
40 lbs Per Hinge
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
120 lbs
Hole Center (Horizontal)
1-3/8" (35mm)
Max Door Width 2 Hinges
30" (762mm)
Max Door Weight 2 Hinges
80 lbs
Product Overview
The Adjustable Wall Mount Hinge with Full Mounting plate is designed for frameless shower doors where stability and smooth function are important. Made from solid forged brass with Satin Chrome finish, this hinge provides both support and appearance for modern bathrooms. This hinge is built with a square edge profile and a full Mounting plate that measures 3-9/16" in height and 2-3/16" in width, with a 5/32" thickness. The Mounting plate width is 2", offering proper coverage for mounting. The vertical hole center measures 2-3/4", and the horizontal hole center is 1-3/8", supporting accurate glass-to-wall installations. It is designed for 3/8" and 1/2" thick glass and requires a cutout in the glass panel for mounting. The included stainless steel hex clamping screws, wrench, and crosshead screws provide all components needed for proper installation. The hinge supports self-centering at 0 degrees return and allows adjustment up to 30 degrees in or out, making it flexible for different frameless shower door layouts. In terms of weight capacity, each hinge is rated at 40 lbs, with 2 hinges supporting up to 80 lbs and 3 hinges supporting up to 120 lbs.
