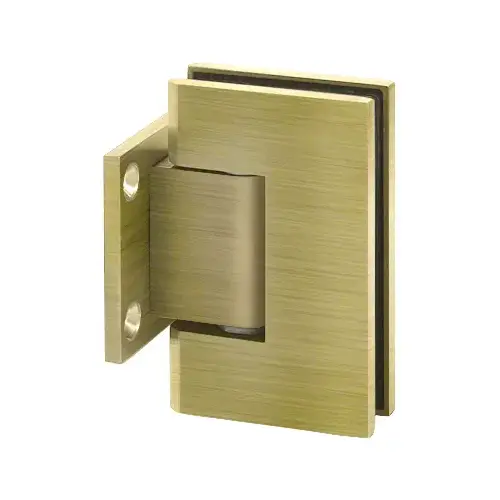

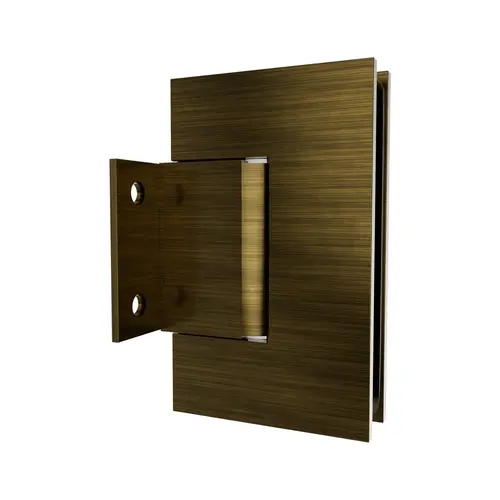

Brixwell HGTWAABClick To Copy Wall Mount Hinge With Short Back Plate 3/8" and 1/2" Glass Thickness Adjustable Type Antique Brass Finish

The Adjustable Wall Mount Shower Door Hinge with Short Back Plate in Antique Brass finish is designed for frameless shower enclosures that require precise wall-to-glass mounting. Made from solid forged brass with precision-machined stainless steel internal components, this hinge provides strength and reliable performance in shower hardware, glass hardware, and door hardware applications. Dual precision wound stainless steel return springs allow self-centering 0 degree return with self-closing from a 25 degree door angle, ensuring consistent daily use. The hinge features an adjustable design that lets installers fine-tune the door closing position up to 30 degree in or out after installation. Adjustment is simple, using a 3mm hex wrench to loosen two screws, reposition the door, and re-tighten for secure alignment. The short back plate provides compact mounting, with a square edge profile and mouse ear design that improves fitting accuracy. Designed for 3/8" (10mm) and 1/2" (12mm) tempered glass, this hinge requires fabrication cutouts. Each hinge is rated at 40 lbs, with two hinges supporting a maximum door weight of 80 lbs and a width of 30", while three hinges support up to 120 lbs and a width of 36". For reference, 3/8" glass weighs 5.05 lbs/sf and 1/2" glass weighs 6.40 lbs/sf. Dimensional details include an overall height of 3-9/16", overall width of 2-3/16", depth of 2", and thickness of 3/16" per side, with plate lip thickness of 1/8". The back plate provides 1-3/8" horizontal and 1-1/2" vertical screw spacing. Hardware includes stainless steel hex clamping screws, crosshead screws, and a hex wrench in a matching finish for installation.
