30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

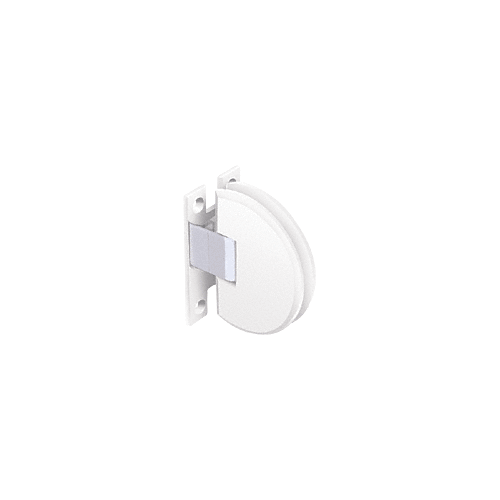

- Features Round Design and Beveled Edges
- Available in Several Beautiful Finishes
- Wall Mount Standard Back Plate
- Use Monolithic Tempered Glass
2 Lb (907g)
2-1/2" (63 mm)
3-11/16" (94 mm)
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum width of 34" (864 mm).
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Precise Closing to 0º
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
