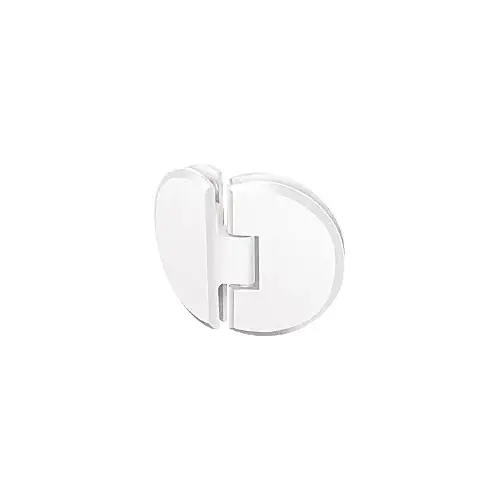

CRL CLA135W White Classique 135 Series 135 degree Glass-to-Glass Hinge

The CRL Classique Shower Door Hinge is a design apart from traditional hinges. The beautiful round design and beveled edges are the result of an artist's unique concept of the perfect hinge for décors with strong curved and contoured influences. There are five distinct models, including a Flush Back Plate Wall Mount Hinge for clean exterior sight lines. The Classique's beveled edges make an excellent presentation of sleek design, while the solid brass construction ensures superior quality and long life.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Precise Closing to 0º
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
