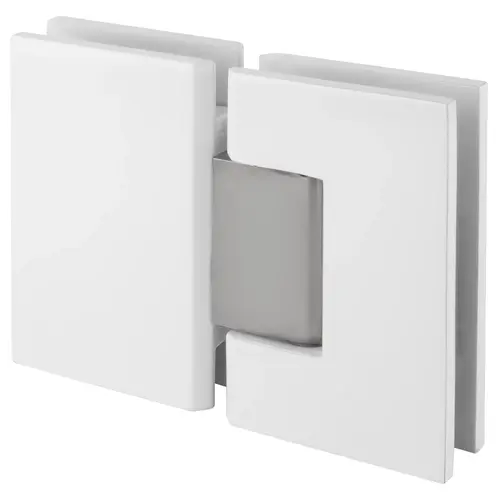

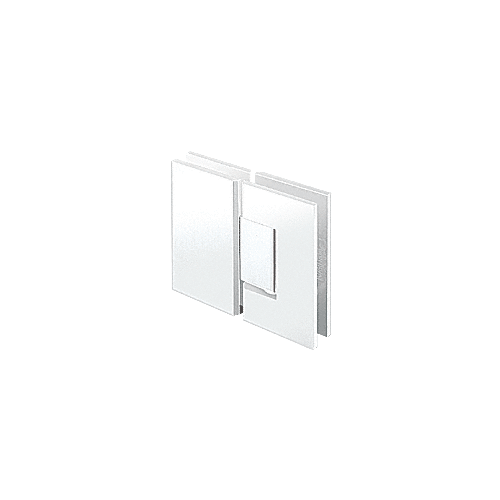

CRL JRG180WC White with Chrome Center Block Junior Geneva 180 Series 180 Degree Glass-to-Glass Hinge
Item #: JRG180WC by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
- Self-Centering with Reversible 5 Degrees Pivot Pin
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
1-13/16" (46 mm)
2-15/16" (75 mm)
STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum width of 32" (813 mm).
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
