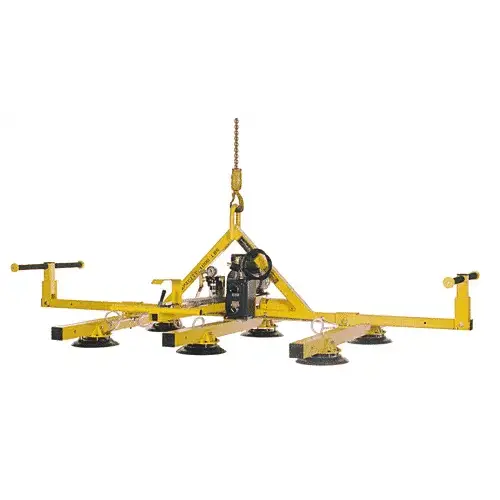

Wood's Powr-Grip FL6HV11A1RS Air Powered 1000 Series Flat Lifter
Item #: FL6HV11A1RS by Wood's Powr-Grip
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1000 lbs. (455 kg) Lifting Capacity
- Six 10 Inch (254 mm) Diameter Lipped Vacuum Pads
Shipping Weight
195 lb (88.45kg)
Brand
Wood's Powr-Grip
Lifting Capacity
1000 pounds (455 kg)
F.O.B
Laurel, MT.
Standard Pad Spread
23" x 49-1/2" (584 mm x 1.26 m)
Pad Spread Size
23" x 49-1/2" (584 mm x 1.26 m)
Product Overview
CRL Wood's Powr-Grip® Air Powered 1000 Series Flat Lifter is designed for lifting materials with irregular shapes, holes or surface obstructions with no problem. This Lifter features movable vacuum pads and sliding adjustable pad arms. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Vacuum Pad Spread:
23 x 49-1/2 inches (584 x 1257 millimeters) (minimum)
60 x 89-1/2 inches (1524 x 2273 millimeters) (maximum)
Number/Size of Vacuum Pads:
6 / 10 inch (254 millimeter) diameter lipped vacuum pads
Lifting Capacity: 1000 pounds (455 kilograms)
Standard Operating Power:
120 volts AC, 60 hertz, 5 amps
Unit Weight: 195 lbs. (89 kg)
Apply: 4 sec. Release: 4 sec. (approx)
Load Movement:
Flat to Flat
Standard features:
Movable Pad Mounts
Sliding Adjustable Arms
Parking Stands / Control Handles
Twist-lock Electrical Plug
Spring-mounted Pads
Green Lift Light
Vacuum Reserve Tank
Vacuum Gauge
Vacuum Line Filter
Blow-off For Quick Release
Alternative Power Systems:
DC Power System (Cat. No. FL6HV11DCS)
Air (venturi) Power System (Cat. No. FL6HV11A1RS)
Standard Vacuum Pad Spread:
23 x 49-1/2 inches (584 x 1257 millimeters) (minimum)
60 x 89-1/2 inches (1524 x 2273 millimeters) (maximum)
Number/Size of Vacuum Pads:
6 / 10 inch (254 millimeter) diameter lipped vacuum pads
Lifting Capacity: 1000 pounds (455 kilograms)
Standard Operating Power:
120 volts AC, 60 hertz, 5 amps
Unit Weight: 195 lbs. (89 kg)
Apply: 4 sec. Release: 4 sec. (approx)
Load Movement:
Flat to Flat
Standard features:
Movable Pad Mounts
Sliding Adjustable Arms
Parking Stands / Control Handles
Twist-lock Electrical Plug
Spring-mounted Pads
Green Lift Light
Vacuum Reserve Tank
Vacuum Gauge
Vacuum Line Filter
Blow-off For Quick Release
Alternative Power Systems:
DC Power System (Cat. No. FL6HV11DCS)
Air (venturi) Power System (Cat. No. FL6HV11A1RS)
