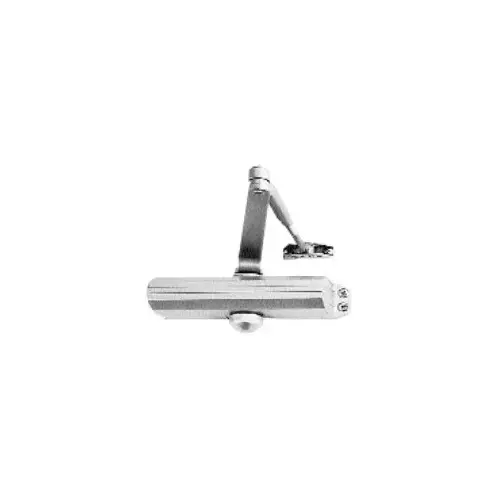

Yale Commercial 51-BC-689 51 Series Door Closer
Item #: 51-BC-689 by Yale Commercial
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Aluminum Painted
Closer Pinion Diameter
5/8 Inch
Handing
Non-Handed
Closer Piston Diameter
1-3/8 Inch
Closer Arm Type
Regular Arm
Finish Description
Aluminum Painted
Product Width
2-7/8 Inch
Function
Tri-Packed Non-Hold Open Arm
Grade
ANSI/BHMA Grade 1
ADA Compliant
YES
Spring Size
1-6
Mounting Type
Push or Pull Side
Closer Clearance
1-1/2 Inch
Product Height
2-5/8 Inch
Application
Retail Stores; Warehouses; Restaurants; Garages; Manufacturing and Utility Buildings
Closer Arm Extension
2-7/8 Inch
Closer Cover
Without Cover
Mount
Push or Pull Side
Standards
Grade 1 - ANSI/BHMA A156.4
Door Size
42" (Interior); 36" (Exterior)
Door Thickness
1-3/4 inch
Closer Fluid
Closer Fluid
Closer Fluid Temperature Range
Very High to as Low as -40°F
Product Type
Door Closer/Holder/Stop
Features
Exceeds 12 Million Cycles; Rack and Pinion Design; Staked Valves
Product Material
Cast Aluminum
Product Length
9-3/4 Inch
Manufacturer Parent
Assa Abloy
Mounting Hole Size
3/4" x 9-1/16"
Maximum Door Opening
180°
Hand
Non-Handed
Sub-Series
51-BC-689
Function Family
Non Hold Open Door Closer
Closer Hold-Open
false
Warranty
30 Year Limited Warranty
Finish Family
Aluminum
Yale® 51 Series Closers are designed to fit almost any application and are the choice of engineers worldwide. They are ideal for use with aluminum store front doors and frames, yet they also complement wood or metal door installations. Non-handed, the 51 series is available as multi-sized units and offers tri-packed packaging on standard non-hold open and hold open closers. This UL listed, Grade 1 closer has a proven history of quality and tradition. With a variety of plates, brackets, precise valve adjustment and a complete range of arms, these closers can be used on retail stores, warehouses, restaurants, garages, or manufacturing and utility buildings. With a full feature set and stylish design, Yale Works for You℠.
Standards and Features:- Exceeds 25 million cycles based on internal cycle testing
- Non-handed
- Tri-packed
- (regular arm, top jamb and parallel arm installations)
- Rack-and-pinion design
- Cast aluminum body
- 1-3/8" (35mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- 2-7/8" (73mm) projection
- All standard arm applications allow doors to swing 180°, conditions permitting
- 15-year limited warranty
- Staked valves
- High strength aluminum alloy closer body provides for long life; independent latch, sweep and backcheck intensity valves ensure positive control
- Exceeds 25 million cycles (independently verified) for long life; 15-year limited warranty
- Longer life results in fewer replacements and less material used; covered by SARGENT Endof- Life Recycling Program; Environmental Product Declaration (EPD) available, based on life cycle assessment
- Adjustable 1-6 spring makes installation selection easier and reduces inventory for customers; Non-handed for installation on right- or left-hand swing doors
- Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interaction with steel components and operating conditions.
- Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not limit door swing.
- With few exceptions all series 51 door closers are nonhanded and can be installed on either right- or left-hand swing doors. Pinion shaft extends vertically through the closer body in both directions. Some options, (such as Parallel Rigid Hold Open Arms) will require that the hand of the closer be specified.
- 51 comes with screws, brackets & soffit plate to allow for regular, top jamb, & parallel arm installations.
- Allows adjustment of door’s speed from the door's full open position down to approximately 10° from the closed position.
- Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.
- Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It slows/ cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.
- All door closers are supplied with a temperature stable, multi-viscosity fluid. This fluid will permit the door closer to perform within a wide temperature range: from very high to as low as -40°F.
- These closers carry a limited fifteen-year warranty against defects and a limited lifetime warranty on the aluminum housing.
- Primed for Painting
- Bright Brass, Clear Coated
- Satin Brass, Clear Coated
- Bright Bronze, Clear Coated
- Satin Bronze, Clear Coated
- Dark Oxidized Satin Bronze, Oil Rubbed
- Dark Oxidized Satin Bronze - equivalent
- Bright Chrome Plated
- Satin Chrome Plated
- Aluminim Painted
- Dark Bronze Painted
- Light Bronze Painted
- Black Painted
- Medium Bronze Painted
- Satin Brass Painted
- Black Suede Powder Coat
- White Suede Powder Coat
- *600 is a special rust-inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 51 x 600 x 689).
- ^ Available on arms only.
