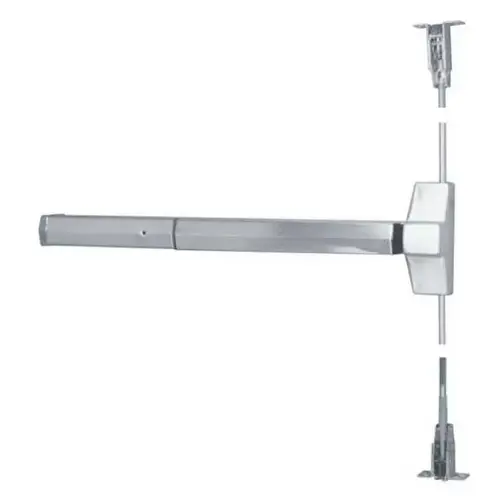

Yale Commercial 7120F-MELR-36-630-LHR 7120 Fire Rated Concealed Vertical Rod Exit Device
Item #: 7120F-MELR-36-630-LHR by Yale Commercial
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Application
Pairs of Doors
Length
3 Foot Device
Hand
Left Hand Reverse
Handing
Left Hand Reverse
Warranty
Five Year Mechanical; Two Year Electrical
Color Code
630/US32D
Function
Exit Only
Device Length
36 Inch (3 Foot)
Bolt Throw
Top: 3/4"; Bottom: 5/8"
Stile
Wide Stile
Door Height
7 Foot (84 Inches)
Fire Rated
Yes
Finish Description
Satin Stainless Steel
Device Type
Concealed Vertical Rod Device
Electric Options
MELR
Latch Type
Automatic Deadlatching
Strike Type
Top: Roller Type 791; Bottom: Flush Mounted 790
ADA Compliant
No
Finish Family
Stainless Steel
Standards
ANSI/BHMA Certified A156.3 Type 8, Grade 1; UL/cUL GXHX/GXHX7
Stile Width
4-1/2 Inch
Device Bar Projection
3-1/4" Active, 2-3/4" Dogged
Device Rating
Fire Exit Hardware
For Door Height
8 Foot
Device Trim Function
Exit Only
For Door Thickness
1-3/4"
Device Centerline From Finished Floor
39-15/16"
Function Family
Exit Only Device
For Door Width
30" to 36"
Electrified Features
Motorized Electric Latch Retraction
Features
Designed for Wide Stile and Flush Doors; Fully Adjustable Roller Strike
Product Type
Electronic Exit Device/Trim
Series
7120 Pushpad
Door Material
Metal
Manufacturer Parent
Assa Abloy
Mechanical Features
Fire Exit Device
Sub-Series
7120F-MELR-36-630-LHR
Product Overview
630 Satin Stainless Steel, Fire Rated, Motor Electric Latch Retraction, 36" Door Width, LHR
