YALE MTS EXIT DEVICE X RHR X LATCH PULLBACK
7130 SeriesMortise

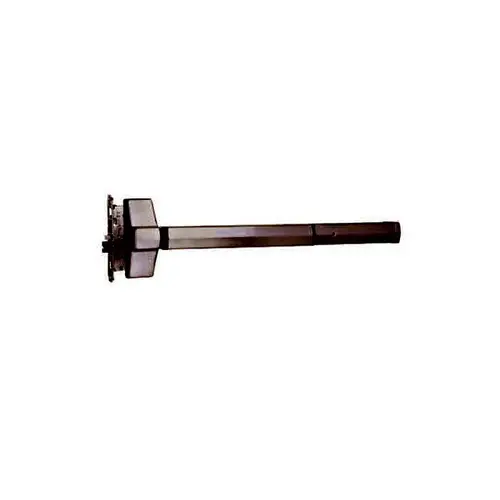

The 7130(F) is an exit device integrated with the Yale® 8700 Series Mortise Lock for use on single doors or active leaf of a pair of doors where life safety and extra security are required. The 8700 Series Mortise Lock used is modified for use with exit devices only.

Features:

• Designed for wide stile and flush doors

• Handed; specify hand

• Two-piece mechanical 3/4" throw deadlocking stainless steel latchbolt

• Easily disassembles for maintenance and service

• Available in double cylinder function

Applications:

• Single swing doors

• Pairs of doors with vertical rod devices or automatic flush bolts

• Metal, wood or compatible door materials

Specifications: Door Opening Width:

• 24 for 24" (60cm) doors
• 36 for 30" - 36" (76cm - 91cm) doors
• 48 for 36" - 48" (91cm - 122cm) doors

Door Thickness:

• 1-3/4" (44mm) standard. 2" and 2-1/4" (51mm and 57mm)

Minimum Stile Width:

• 4-1/2" (114mm)

Projection:

• 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt:

• Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxiliary deadlocking latch

Strike:

• Curved lip, non-handed 798

Fasteners:

• Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims:

• 620F/650F series escutcheon trim, 630F/660F/670F series pull/thumbpiece trim, 684F offset pull trim.

ANSI/BHMA:

• Certified A156.3 Type 3, Grade 1

UL/cUL:

• FVSR/FVSR7 - Panic hardware

Dogging:

• Hex key dogging supplied standard on panic devices

Warranty:

• 5-year limited

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

611:

• Bright Bronze, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze - equivalent

616:

• Blackened, and Satin Relieved, Clear Coated

619:

• Satin Nickel Plated, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

629:

• Bright Stainless Steel

630*:

• Satin Stainless Steel

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• 613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information

• *Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
