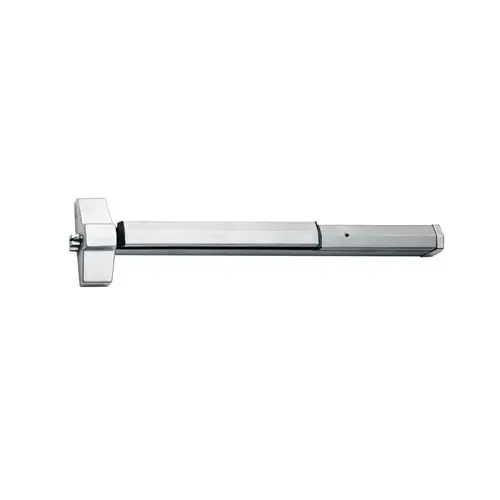

Yale Commercial 7150A36630Click To Copy 7150 Rim Squarebolt Exit Device, Satin Stainless Steel

7150 SeriesRim SquareBolt®

Just as easy to open as traditional latchbolts, the SquareBolt® exit device's unique construction offers innovative protection. Its patented SquareBolt (Pat. no. 5,605,362) design presents an improved physical barrier over standard rim latchbolts. The SquareBolt exit device locks into place and stays there. Credit cards, crowbars, door rattling and shaking are resisted, significantly reducing the threat of unauthorized entry.

Features:

• Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for maximum holding power

• Non-handed for easy installation

• Can be retrofitted onto existing 7100 series templated doors

• Fully adjustable surface-mounted 3/8" diameter roller strike complete with positive locking plate and shims

• Available in double cylinder function (handing must be specified)

• Available certified hurricane resistant (refer to local codes). Specify 7150(F)WS

Applications:

• Single swing doors

• Pairs of doors with removable mullions

• Metal, wood or composite door materials

Specifications: Door Opening Width:

• 24 for 24" (60cm) doors
• 36 for 30" - 36" (76cm - 91cm) doors
• 48 for 36" - 48" (91cm - 122cm) doors

Door Thickness:

• 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering.

Minimum Stile Width:

• 4-1/2" (114mm)

Projection:

• 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Deadbolt:

• Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike:

• 757F

Fasteners:

• Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims:

• 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.

ANSI/BHMA:

• A156.3, Type 4 or 28, Grade 1

UL/cUL:

• FVSR/FVSR7 - Panic hardware
• GXHX/GXHX7 - Fire exit hardware (F)
• (4' x 8' single, 8' x 8' pairs, 3 hr.)
• ZHEM - Latching hardware
• ZHLA - Windstorm rated assemblies

Dogging:

• Hex key dogging supplied standard on panic devices

Warranty:

• 5-year limited

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

611:

• Bright Bronze, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze - equivalent

616:

• Blackened, and Satin Relieved, Clear Coated

619:

• Satin Nickel Plated, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

629:

• Bright Stainless Steel

630*:

• Satin Stainless Steel

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• 613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information

• *Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
