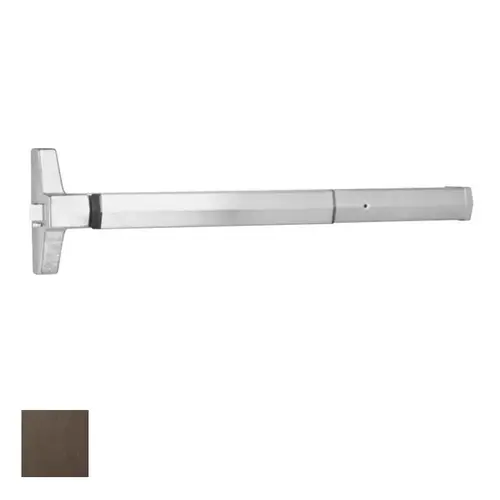

Yale Commercial 7200P-36-613E 7200 Series Exit Device, Dark Oxidized Satin Bronze
Item #: 7200P-36-613E by Yale Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Dark Oxidized Satin Bronze
Length
3
Handing
Non-Handed
Function
Exit Only
Device Length
36 Inch (3 Foot)
Stile
Narrow Stile
Fire Rated
No
Finish Description
Dark Oxidized Satin Bronze
Product Type
Electronic Exit Device/Trim
Series
7200 Pushpad
For Door Thickness
1-3/4"
Manufacturer Parent
Assa Abloy
Stile Width
2 Inch
Device Rating
Panic Exit Hardware
Latch Type
Deadlocking
Electrified Features
Electric Latch Pullback
Sub-Series
EDT_Electronic_Devices_Trim_yale_commercial_5
ADA Compliant
No
Application
Single swing narrow stile doors; Pairs of narrow stile doors with removable mullions
Device Type
Rim Device
Device Trim Function
Exit Only
Function Family
Exit Only Device
Standards
ANSI/BHMA Certified A156.3, Type 4, Grade 1; UL/cUL FVSR/FVSR7
Device Bar Projection
3-1/4" Active, 2-3/4" Dogged
Features
Designed for Narrow Stile Doors
Strike Type
759
Bolt Throw
3/4"
Dogging Options
Hex Key Dogging
Warranty
Five Year Mechanical; Two Year Electrical
For Door Width
30" to 36"
Door Material
Metal; Aluminum
Finish Family
Dark Bronze
Product Overview
7200 SeriesRim
The 7200 is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors. The 7200 comes in varied finishes and can be combined with a variety of trims to match any desired style.
Features:- Designed for narrow stile doors
- 3/4" throw deadlocking stainless steel pullman latch
- Non-handed for easy installation
- Single swing narrow stile doors
- Pairs of narrow stile doors with removable mullions
- Metal and aluminum doors
- For panic-rated doors only
- 24 for 24" (60cm) doors
- 36 for 30" - 36" (76cm - 91cm) doors
- 48 for 36" - 48" (91cm - 122cm) doors
- 1-3/4" (44mm) standard. 2" (51mm) and 2-1/4" (57mm); specify when ordering.
- 2" (51mm)
- 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
- 3/4" (19mm) deadlocking stainless steel pullman type.
- Standard: 759
- Machine screws standard for panic hardware
- 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim.
- A156.3, Type 4, Grade 1
- FVSR/FVSR7 - Panic hardware
- Hex key dogging supplied standard
- 5-year limited
- Bright Brass, Clear Coated
- Satin Brass, Blackened, Satin Relieved, Clear Coated
- Bright Bronze, Clear Coated
- Satin Bronze, Clear Coated
- Dark Oxidized Satin Bronze - equivalent
- Blackened, and Satin Relieved, Clear Coated
- Satin Nickel Plated, Clear Coated
- Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
- Bright Stainless Steel
- Satin Stainless Steel
- Black Painted
- Black Suede Powder Coat
- White Suede Powder Coat
- 613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information
- *Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.
- MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
