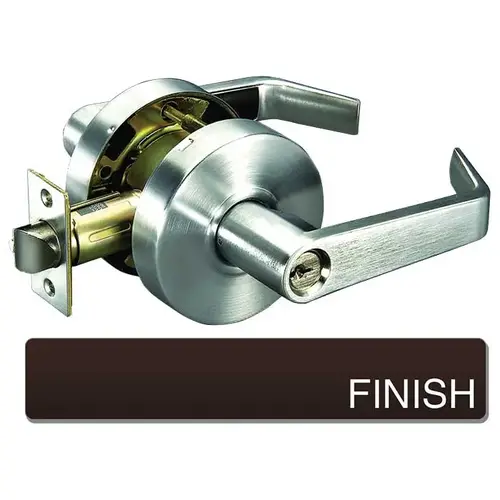

Yale Commercial AU-4607LN-613E-2806 Office Entry Augusta Lever Grade 2 Cylindrical Lock with Schlage C Keyway, MCD234 Latch, and 497-114 Strike US10BE (613E) Oil Rubbed Bronze Finish
Item #: AU-4607LN-613E-2806 by Yale Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Dark Oxidized Satin Bronze
Backset
2-3/4 Inch
Function
07LN-Entry
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Finish Description
Dark Oxidized Satin Bronze
Lever Style
AU-Augusta
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
4600LN Series
Grade
ANSI/BHMA Grade 2
Application
Commercial Applications
Hand
Non-Handed
Handle Type
Lever
Door Thickness
1-3/8" to 1-3/4"
Rose Diameter
3-3/8 Inch
ANSI Function
F109
Latch Number
MCD234
Latch Type
Deadlatch
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Dark Bronze
Included Components
(2) Keys
Standards
UL/cUL Listed
Cylinder Type Used
Conventional
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size
1-1/8" x 2-1/4"
Function Family
Entry/Entrance/Office
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Cast Zinc (Lever); Brass (Rose)
Features
Versatile; Economical; Secure; Strong and Reliable
Warranty
3 year mechanical
Color Code
613E/US10BE
Latch Throw
1/2 Inch
Manufacturer Parent
Assa Abloy
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Sub-Series
AU-4607LN-613E-2806
Strike Size
1-1/4" x 4-7/8"
Cylinder Material
Brass
Dimension
4-3/4" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Material
Cast Zinc
Keyway
Schlage C Keyway
Manufacturer Warranty
Limited 3 Year Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL-cUL Fire Rated up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 2-1/4"
Cross Bore Size
2-1/8" Bore with Optional Thru Bolts
Finish code
613E
Design
Augusta
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Augusta Lever
No of inners
1
No Of Pins
6 Pin
Product Overview
4600LN SeriesLever Locks
Yale® 4600(LN) cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600(LN) Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind. To make your building work better with your budget, Yale Works for You℠.
Benefits: Versatile:- Field reversible handing and other product options offer flexibility in many commercial applications
- Priced affordably to suit projects of all budgets
- Quality security from a trusted brand for over 170 years
- ANSI/BHMA Grade 2 certified for long life and reliability
- Field reversible handing for easy installation
- Range of functions and options for a wide variety of commercial applications
- Available in four trims and eight finishes
- ADA compliant for ease of accessibility
- 2-3/4" standard
- Adjustable for doors 1-3/8" to 1-3/4"
- Non-handed, field reversible
- 2-3/4" backset, 1/2" throw latchbolt deadlocking
- ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
- Certified Grade 2
- ANSI/BHMA A156.115
- Listed for 3 hour fire doors
- Certified, check local codes
- 3 years
- Bright Brass, Clear Coated
- Satin Brass, Clear Coated
- Satin Bronze, Clear Coated
- Dark Oxidized Satin Bronze - equivalent
- Bright Chrome Plated
- Satin Chrome Plated
- Bright Stainless Steel
- Satin Stainless Steel
- * Finish available for lever trim only
- ** Finish available for knob trim only
