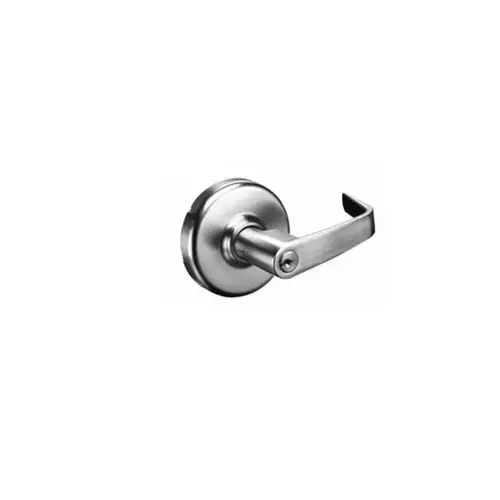

Corbin Russwin CL3510 NZD 613 CL3510 Passage Lockset, Oil Rubbed Dark Bronze

Item #: CL3510 NZD 613 by Corbin Russwin

See reviewsSee reviews
HURRY! Low in stock

$472.96

/each
SAVE UP TO 47.30

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Independent return springs to prevent lever sag
  • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
  • ANSI Grade 1 certification
  • Trim and keying compatible with other Corbin Russwin locksets

Thickness

1-3/8" - 1-3/4"

Strike Number

SA114

Package Volume

337.5

Latch Number

600F03

Color

Dark Oxidized Satin Bronze Oil Rubbed

Case Width

14.5"

Function

10-Passage/Closet

Latch Type

Plain

ANSI Function

F75

Hand

Not Handed

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Lock Face Size

2-1/4" x 1-1/8"

Case Length

15.5"

Package Qty

1

Package Height

4.5"

Screws

Combination

Case Height

10.5"

Package Width

7.5"

Bolt Protection

1/2"

Case Volume

2359.875

Color Code

613/US10B

Strike Type

ANSI Curved Lip

Rose/Escutcheon Design

D - Rose

Base Material

Bronze

Strike Height

4-7/8"

Lever/Knob Design

NZ - Newport

Package Length

10"

Finish

Oil Rubbed Dark Bronze

Backset

2-3/4 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Finish Description

Oil Rubbed Dark Bronze

Lever Style

NZD-Newport

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

CL3500 Series

Projection

2.8125

Lever Length

4.5000

Door Thickness

1-3/8" - 1-3/4"

Bore Size

2.1250

ADA Approved

False

Application

Ideal for Commercial; Institutional and Multifamily Applications Such as Interior Offices; Apartment Complexes; Convalescent and Elderly Care Facilities; Hotels; Restaurants; Retail Centers

Warranty

7 Year Limited

Handle Type

Lever

Rose Diameter

3-1/2 Inch

Latch Throw

1/2 Inch

ADA Compliant

YES

Finish Family

Dark Bronze

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2; Meets A117.1 Accessibility Code; UL/cUL Listed

Function Description

Latch retracted by knobs/levers at all times

Front Size

2-1/4" x 1-1/8" x 1"

Function Family

Passage/Hall/Closet

Strike Lip

1-1/4 Inch

Product Projection

2-13/16 Inch

Trim Material

Solid Cast Zinc (Lever); Brass (Rose)

Features

Independent Return Springs to Prevent Lever Sag; Through-Bolted Cylindrical Chassis Prevents Rotation and Ensures Proper Alignment; Trim and Keying Compatible with Other Corbin Russwin Locksets

Manufacturer Parent

Assa Abloy

Lever Length-Inches

4.50 Inch

Latch Corner

Square

Knob/Lever Size

4-1/2 Inch

Latch Bolt Material

Chrome Plated Brass

Lever Style Family

Straight Return Lever

Sub-Series

CL_Cylindrical_Locks_corbin_russwin_181

Strike Size

4-7/8" x 1-1/4" x 1-1/4"

Product Overview
CL3500 SeriesHeavy Duty Lockset

A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications.

Certification/Compliance: ANSI/BHMA:
  • Designed to meet A156.2 Series 4000, Grade 1
  • Meets A117.1 Accessibility Code
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with returns comply; levers return to within 1/2" of door face
UL-cUL:
  • All locks listed for "A" label and lesser class single doors, 4' x 10'. Letter F and UL symbol on latch front indicate listing.
Specifications: Handing:
  • Non-handed
Door Thickness:
  • 1-3/4" (45mm) standard (fits doors 1-3/8" - 1-3/4" (35mm - 45mm))
Backset:
  • 2-3/4" (70mm) standard
Lock Chassis:
  • Steel, zinc dichromated for corrosion resistance
Front:
  • Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" (29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset. 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
Latchbolt:
  • Brass, chrome plated with 1/2" (13mm) throw.
Auxiliary Latchbolt:
  • Deadlocking latchbolt prevents manipulation when door is closed
Strike:
  • Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center standard
Cylinder:
  • Brass, 6-pin, L4 keyway, 0-bitted standard
Keys:
  • Two nickel-silver standard
Warranty:
  • Seven-year limited
MicroShield®:
  • CL3500 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".
Keying Features Available:
  • 7-pin
  • Master keying
  • Construction master keying
  • Visual key control
  • Concealed key control
  • Interchangeable core (IC)
  • Security
  • Security IC
  • Access 3® Patented
  • Access 3® Security
  • Access 3® High Security
  • Access 3® Patented IC
  • Access 3® Security IC
  • Access 3® High Security IC
  • Pyramid Security
  • Pyramid Security IC
  • Pyramid High Security
  • Pyramid High Security IC
