30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Thickness
1-3/4" - 2"
Strike Number
SA114
Package Volume
337.5
Latch Number
586F17
Color
Satin Chrome
Case Width
14.5"
Function
55-Classroom
Latch Type
Deadlocking
ANSI Function
F84
Hand
Not Handed
Grade
ANSI/BHMA Grade 1
Fire Rated
3 Hours {A}
Special Marks
Full size/large format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
LFIC Less Core-Large Format Prep
Lock Face Size
2-1/4" x 1-1/8"
Case Length
15.5"
Package Qty
1
Package Height
4.5"
Screws
Combination
Case Height
10.5"
Package Width
7.5"
Bolt Protection
1/2"
Case Volume
2359.875
Color Code
626/US26D
Strike Type
ANSI Curved Lip
Rose/Escutcheon Design
D - Rose
Base Material
Brass or Bronze
Strike Height
4-7/8"
Lever/Knob Design
NZ - Newport
Package Length
10"
Finish
Satin Chrome
Backset
2-3/4 Inch
Finish Description
Satin Chrome
Lever Style
NZD-Newport
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
CL3300 Series
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Projection
2.8125
Lever Length
4.5000
Door Thickness
1-3/4" - 2"
Bore Size
2.1250
ADA Approved
False
Application
Schools and Universities; Hospitals; Corporate Campuses; Government/Municipal Buildings; Commercial Buildings
Warranty
7 Year Limited
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Latch Throw
1/2 Inch
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; Meets A117.1 Accessibility Code; Covers ANSI/DHI Door Prep A115.18; UL/cUL Listed
Cylinder Type Used
Large Format Interchangeable Core With Less Core
Function Description
Deadlocking latch bolt by levers. Outside knob/lever is locked by key in outside lever. Inside knob/lever is always free.
Front Size
2-1/4" x 1-1/8"
Function Family
Classroom
Strike Lip
1-1/4 Inch
Product Projection
2-13/16 Inch
Trim Material
Solid Cast Zinc (Lever); Brass (Rose)
Features
Vandal Resistance; Allowing the Outside Lever to Rotate when in the Locked Position; EZ-Install Components Significantly Reduce Installation Time; Pyramid Cylinders for Increased Security
Manufacturer Parent
Assa Abloy
Lever Length-Inches
4.50 Inch
Latch Corner
Square
Knob/Lever Size
4-1/2 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_corbin_russwin_114
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
4-7/8" x 1-1/4" x 1-1/4"
Cylinder Material
Brass

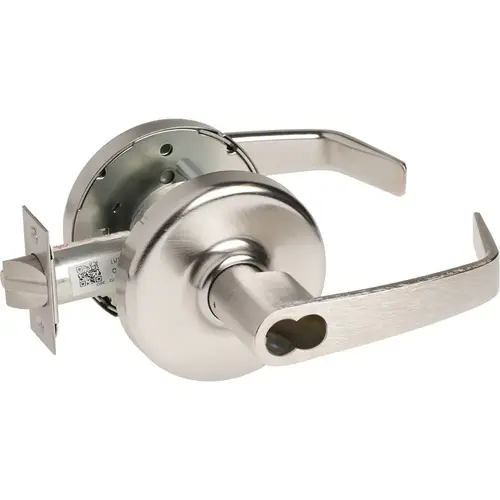

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
The CL3352 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not. And because a key is needed to secure the door from either side, students cannot lock a teacher out of the classroom.
Engineered to meet today's increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position.
For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
Certification/Compliance: ANSI/BHMA:
