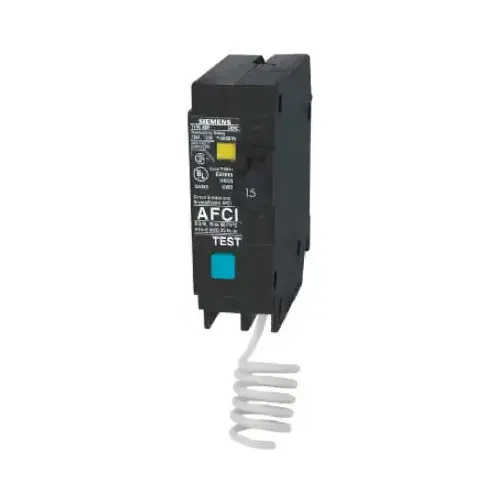

Siemens QA115AFC Circuit Breaker, AFCI, Combination, 15 A, 1 -Pole, 120/240 V, Fixed Trip, Plug Mounting, Black
Item #: QA115AFC by Siemens AG
UPC #: 887621216207
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Detects all three possible types of arc faults such as line-to-ground, line-to-neutral and Series
- Intended to mitigate the effects of parallel arcs by de-energizing the circuit when an arc-fault is detected
Voltage
120
Mounting Type
Plug
Warranty
1 Year
Certifications
UL
Amperage
15 Amp
Phase
1
Manufacturer Warranty
1 Year
Breaker Type
Single Pole
Certifications and Listings
UL Listed
Circuit Breaker Type
AFCI
Maximum Amperage
15
Number of Poles
1
Product Depth (in.)
1.2
Product Height (in.)
3.1
Product Width (in.)
4.4
Pack Size
1
Returnable
Yes
UL Listed
No
Defective Code
A
Circuit Protection Type
Arc Fault/Single Pole
Volts
120 V
Packaging Type
Carded
Depth
3"
Product Type
Circuit Breaker
AMPS
15 amps
CSA Listed
Yes
Each Weight
0.300 LB
Velocity
D
UNSPSC
39121601
Alternative UPC
887621216207
Height
3.00
ECCN
EAR99
Width
4.00
Country Origin Code
MX
Length
1.00
Hazardous Material
No
Dimensions
3-1/4 in L x 1 in W x 3 in D
Application
For use with Siemens EQ load centers
Type
AFCI Combination
Color
Black
Wire Size
14 to 8 AWG
Number of Phases
1
Terminal Type
Lug
Interrupt Rating
10 kA
Trip Type
Fixed
Nomenclature
QA115AFC 15A 1P ARC FAULT BRKR
Actuator Type
Toggle
Current Rating
15 A
Indoor or Outdoor
Indoor and Outdoor
Product Overview
BREAKER CIRCUT BLACK 120V 15A
Plug-in, combination type CAFCI circuit breaker, complies with the requirements for both branch/feeder and outlet circuit CAFCIs. Required on January 1, 2008 by 2005 NEC, combination type CAFCI circuit breakers must be placed on bedroom power and lighting circuits. Protects downstream branch circuit wiring and cord sets and power supply cords. Provides ARC fault, overload and short circuit protection. UL listed. Protects against worn electrical insulation or damaged wire, misapplied or damaged plug-in appliances and equipment and loose electrical connections. 2 LEDs appear for 5 secs each time the CAFCI is turned on, up to 30 days after the last trip to indicate last known trip condition. One LED means arcing fault. Two LEDs means arcing fault to ground. 10 kA interrupting rating. UL listed, 120 VAC. Wire range 14 to 8 AWG. 1 in space, 120 V.
