Circuit Breaker, AFCI, Combination, 15 A, 1 -Pole, 120 V, Common Trip, Plug Mounting

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

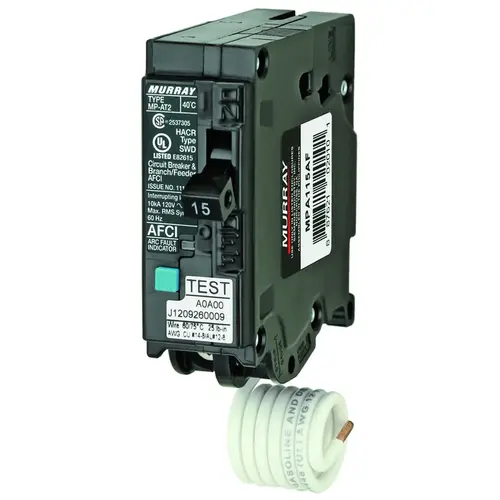

Siemens MPA115AFC Circuit Breaker, AFCI, Combination, 15 A, 1 -Pole, 120 V, Common Trip, Plug Mounting

Item #: MPA115AFC by Siemens AG

UPC #: 887621216054

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • This feature saves the contractor time and money by pinpointing the causes and types of breaker trips

Voltage

240

Mounting Type

Plug

Warranty

1 Year

Certifications

UL

Amperage

15 Amp

Phase

1

Manufacturer Warranty

1 Year

Breaker Type

Single Pole

Certifications and Listings

UL Listed

Circuit Breaker Type

AFCI

Maximum Amperage

15

Number of Poles

1

Product Depth (in.)

1.5

Product Height (in.)

6.5

Product Width (in.)

6.5

Pack Size

1

UNSPSC

39121601

Type

AFCI Combination

Wire Size

14 to 8 12 to 8 AWG

Number of Phases

1

Interrupt Rating

10 kA

Trip Type

Common

Nomenclature

MPA115AFC BREAKER 15A SP ARC F

Current Rating

15 A

Product Overview
MPA115AFC BREAKER 15A SP ARC F

Detects arcing faults that standard circuit breakers are unable to detect. Intended to mitigate the effects of parallel arcs (line-to-ground or line-to-neutral) by de-energizing the circuit when an arc-fault is detected. Industry exclusive LED light to indicate type of trip. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 2 LEDs appear for 5 secs each time the CAFCI is turned on, up to 30 days after the last trip to indicate last known trip condition. One LED means arcing fault. Two LEDs means arcing fault to ground. Wire range - #14 to #8 AWG #12 to #8 AWG. 120VAC. Interrupting rating of 10 kA. UL listed, HACR, SWD Rated.
