Hager 394726D 2500/3500/3700 Series Part, Satin Chrome

2500 Series Grade 2 lock

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The inherent value of this lock and the product offering make our 2500 Series lock a perfect choice for a stocking program. As an economical alternative to other Grade 2 cylindrical locks, it offers both dependability and affordability.

Warranty:

• Five year warranty

Features:

• No exposed mounting screws

• Non-handed

• Conventional cylinder and small format interchangeable core option available

Applications:

• Standard duty commercial
• Standard door prep - 2-1/8" (54 mm) diameter (bore)
• Latch hole - 1" (25.4 mm) diameter (cross bore)

Certifications:

• Meets BHMA ANSI A156.2, Series 4000, Grade 2
• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL 10C Positive Pressure Related
• UL 10B Neutral Pressure Rated

Options:

• Lead lined
• Tactile warning

Lever Options:

• Archer
• Withnell levers

Specifications: Exposed Trim:

• Wrought brass, bronze, and stainless steel
• Lever is zinc based, plated to match BHMA symbols

Rose Diameter:

• 3-11/32" (85 mm)

Lock Chassis:

• Heavy gauge steel, zinc dichromated for
  corrosion resistance
• "Non-clutching" exterior lever on keyed functions
• Removable thru-bolts
• Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty

Keys:

• Two operating keys supplied per lock

Cylinders/Cores:

• Brass, keyed different, Schlage C keyway standard
• Cylinder drilled 6-pin, keyed 5-pin
• Other keying options, including keyed 6-pin, available from the factory
• Zero bit cylinders will be 6 pin keyed – standard
• Small Format Interchangeable Core option available
• SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately

Door Thickness:

• 1-3/8" - 2" (35 mm - 51 mm)

Backset:

• 2-3/4" (70 mm) - Standard
• 2-3/8" (60 mm) - Optional

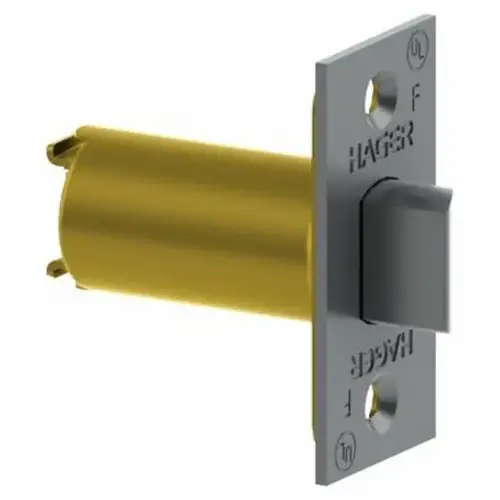

Latchbolt:

• 1/2" (13 mm) throw, stainless steel
• 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for
  2-3/4" (70 mm) backset
• 1" x 2-1/4" (25 mm x 57 mm) faceplate for
  2-3/8" (60 mm) backset
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions and 25 function only

Strike:

• 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike standard
• Optional strikes available

Function:

• 10 Passage, 17 Dummy, 25 Exit Only, 27 Back to Back Dummy, 40 Privacy, 50 Entry/Office, 53 Entry, 70 Classroom, 80 Storeroom

Notes:

• Blank plate projection is 13/16" (21 mm) for function 25

Finishes:

• US3, US10B, US26D
