Jackson 201685 Type UP Combination End-Load Bottom Pivot Set for 1-9/16" Deep Bottom Rails
Item #: 201685 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Combination Set: Hardware for Both Floor and Threshold Mount Applications
- Designed for Doors Weighing Up to 175 Lbs.
- Designed for Use with Aluminum or Properly Prepared Wood and Hollow Metal Doors
- Use with Doors Having 1-9/16" Deep Bottom Rail
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Brand
Jackson
Maximum Door Load
175 lb.
Features
Doors Having 1-9/16" Deep Bottom Rail; Pivot Set is Perfect if You're Unsure of the Mount Application; the Ball Bearing Pivot can be Mounted on the Floor Plate for Direct-To-Floor Installations
Product Type
Hinge/Pivot
Application
Floor and Threshold Mount Applications
Sub-Series
20-1685
For Use With
Aluminum or Properly Prepared Wood and Hollow Metal Doors
Manufacturer Parent
CRH

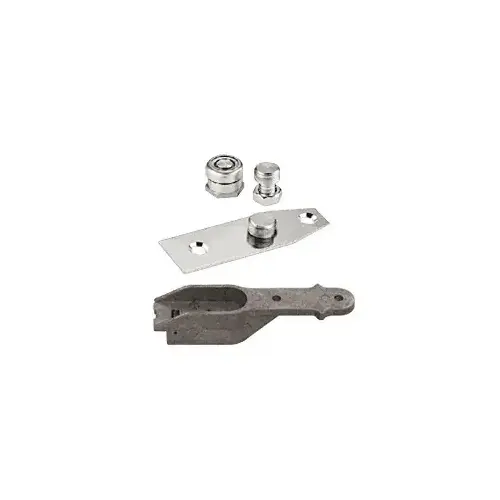

The 1685 UP Pivot set is perfect if you're unsure of the mounting application. The ball bearing pivot can be mounted on the floor plate for direct-to-floor installations or it can be attached with the bolt to the hex nut for threshold mount applications. Included is the 201061 door portion, the 201062 floor portion and the 20650 threshold mounting package.
.
